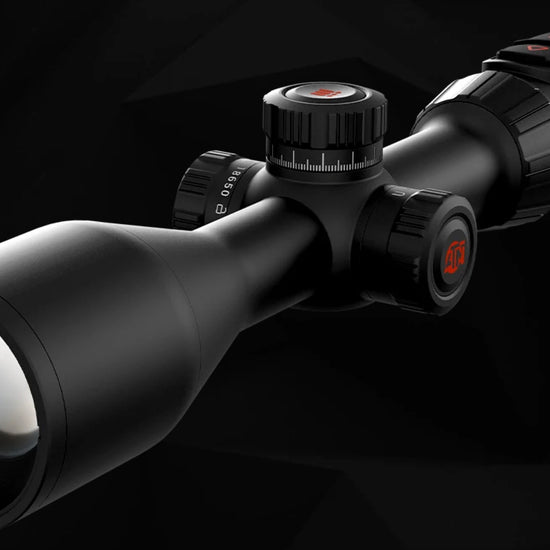

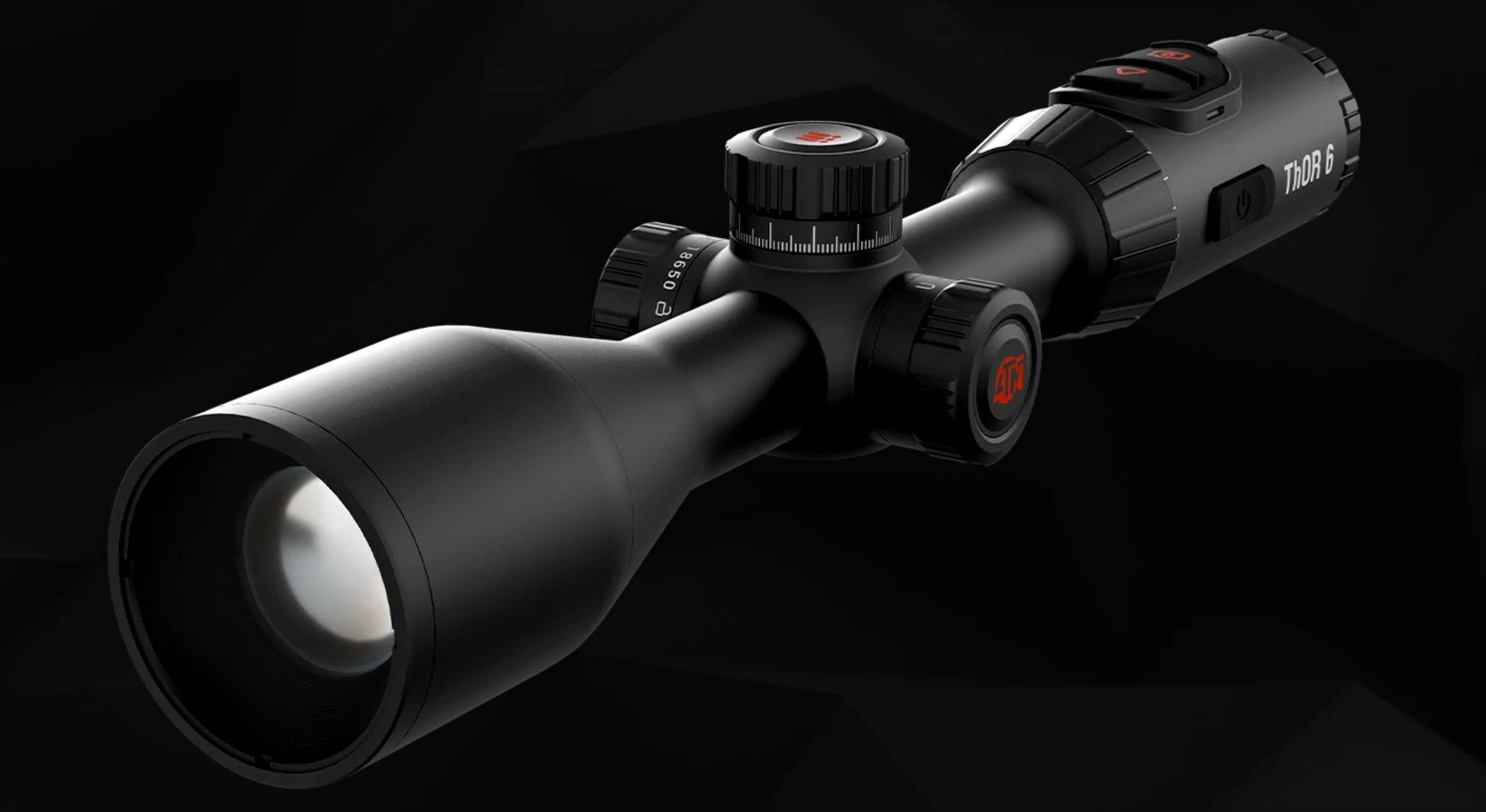

ATN THOR-6 384x288 | 3.5-28x ELITE THERMAL SCOPE
SKU TIWST6335A — — Detector Type 12μm VOx Uncooled Focal Plane Array — — Sensor Resolution 384×288 — — Refresh Rate 50 Hz — — Thermal Sensitivity (NETD) ≤15mK — — SharpIR© Yes — — Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual — — Lens System 35 mm (Ge); F/1.0 — — Field of View (H×V) 7.53° × 5.65° — — Focus Mechanism Manual, Central Knob Control — — Magnification 3.5-28× — — Digital Zoom 1×, 2×, 4×, 8× — — Zoom Type Step & Smooth Zoom — — Detection Range 2750 m — — Display Resolution 0.49" OLED, 1920×1080 Resolution — — Eye Relief 50 mm — — Diopter Range -5 to +5 D — — Picture-in-Picture (PIP) Yes — — Reticle Types 10 Styles — — Reticle Transparency Control Yes — — Zeroing Freeze Yes — — Color Palettes White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia — — Battery Type 1 × 18650 (Internal) & 1 × 18650 Rechargeable (Replaceable) — — Battery Life ~9 hrs — — Supports External Power Supply Yes, USB Type-C (5 VDC / 2A) — — Standby / Sleep Mode Yes — — Startup Time <7 seconds (instant from Standby) — — Internal Storage Capacity 64 GB — — Video / Audio Recording Yes — — Internal Gallery Yes — — Recoil Activated Video (RAV) Yes — — Media Output USB Type-C — — Built-in Wi-Fi (Hotspot) Yes — — App (Apple Store / Google Play) Yes (ATN Connect 6 – iOS & Android) — — Built-in Laser Rangefinder (LRF) — — — LRF Range — — — LRF Accuracy — — — LRF Laser Specs — — — Ballistic Calculator — — — Hot Point Tracking Yes — — Geomagnetic + Gyroscope Yes — — Material Magnesium Alloy — — Mounting 30 mm Rings (not included) — — Weight 830 g / 1.83 lbs — — Dimensions (L x W x H) 430×85×72 mm (16.93×3.35×2.83 in) — — Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms — — Operating Temperature -30°C to 55°C (-22°F to 131°F) — — Waterproof / IP Rating IP67 — — Warranty 5 Year — —
