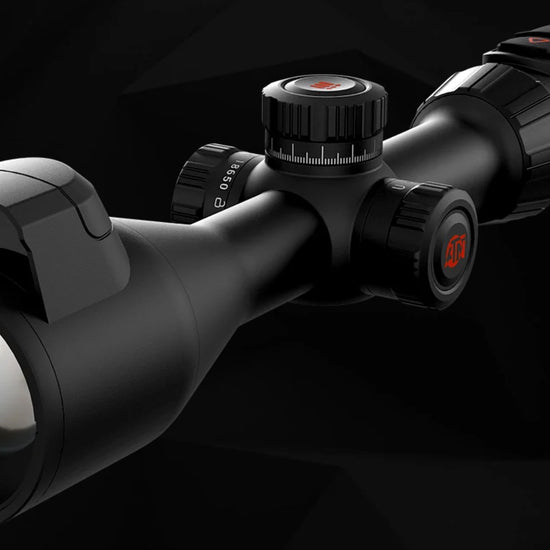

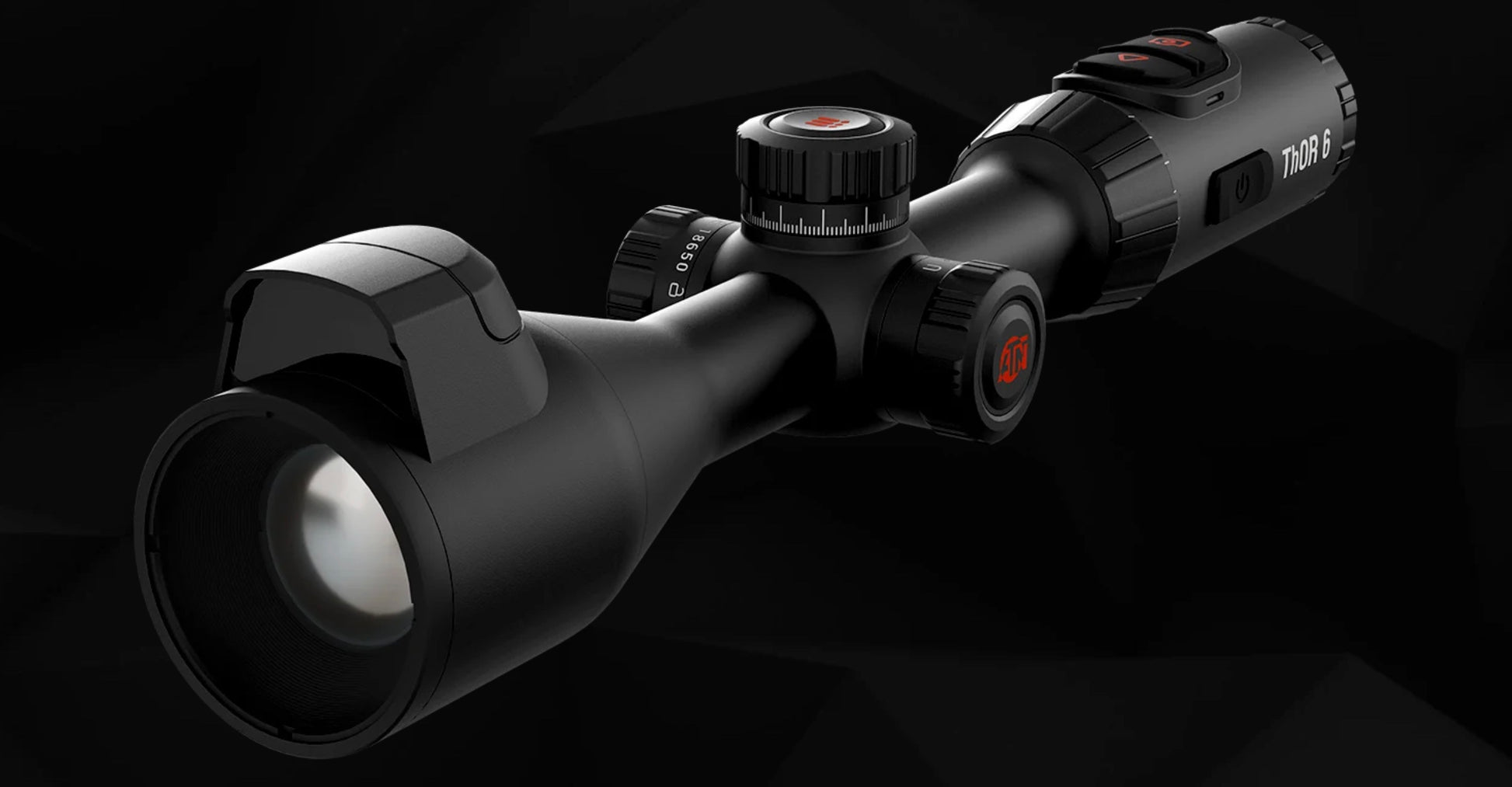

ATN THOR-6 LRF 384x288 | 3.5-28x ELITE THERMAL SCOPE

SKU TIWST6335LRF — —

Detector Type 12μm VOx Uncooled Focal Plane Array — —

Sensor Resolution 384×288 — —

Refresh Rate 50 Hz — —

Thermal Sensitivity (NETD) ≤15mK — —

SharpIR© Yes — —

Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual — —

Lens System 35 mm (Ge); F/1.0 — —

Field of View (H×V) 7.53° × 5.65° — —

Focus Mechanism Manual, Central Knob Control — —

Magnification 3.5-28× — —

Digital Zoom 1×, 2×, 4×, 8× — —

Zoom Type Step & Smooth Zoom — —

Detection Range 2750 m — —

Display Resolution 0.49" OLED, 1920×1080 Resolution — —

Eye Relief 50 mm — —

Diopter Range -5 to +5 D — —

Picture-in-Picture (PIP) Yes — —

Reticle Types 10 Styles — —

Reticle Transparency Control Yes — —

Zeroing Freeze Yes — —

Color Palettes White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia — —

Battery Type 1 × 18650 (Internal) & 1 × 18650 Rechargeable (Replaceable) — —

Battery Life ~9 hrs — —

Supports External Power Supply Yes, USB Type-C (5 VDC / 2A) — —

Standby / Sleep Mode Yes — —

Startup Time <7 seconds (instant from Standby) — —

Internal Storage Capacity 64 GB — —

Video / Audio Recording Yes — —

Internal Gallery Yes — —

Recoil Activated Video (RAV) Yes — —

Media Output USB Type-C — —

Built-in Wi-Fi (Hotspot) Yes — —

App (Apple Store / Google Play) Yes (ATN Connect 6 – iOS & Android) — —

Built-in Laser Rangefinder (LRF) Yes — —

LRF Range 1000 m — —

LRF Accuracy ±1 m — —

LRF Laser Specs 905 nm, Class 1 (Eye Safe) — —

Ballistic Calculator Yes — —

Hot Point Tracking Yes — —

Geomagnetic + Gyroscope Yes — —

Material Magnesium Alloy — —

Mounting 30 mm Rings (not included) — —

Weight 830 g / 1.83 lbs — —

Dimensions (L x W x H) 430×85×72 mm (16.93×3.35×2.83 in) — —

Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms — —

Operating Temperature -30°C to 55°C (-22°F to 131°F) — —

Waterproof / IP Rating IP67 — —

Warranty 5 Year — —
