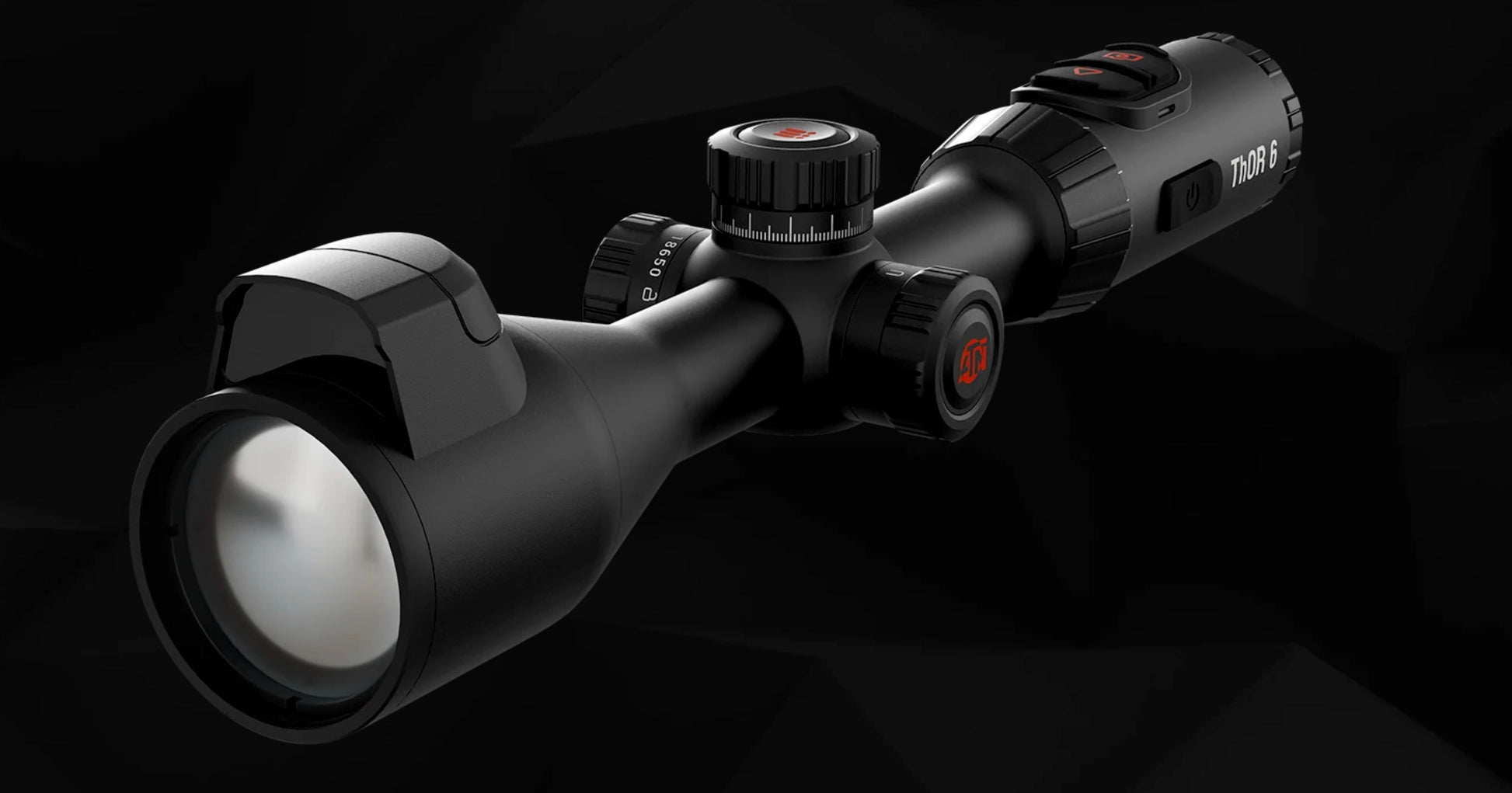

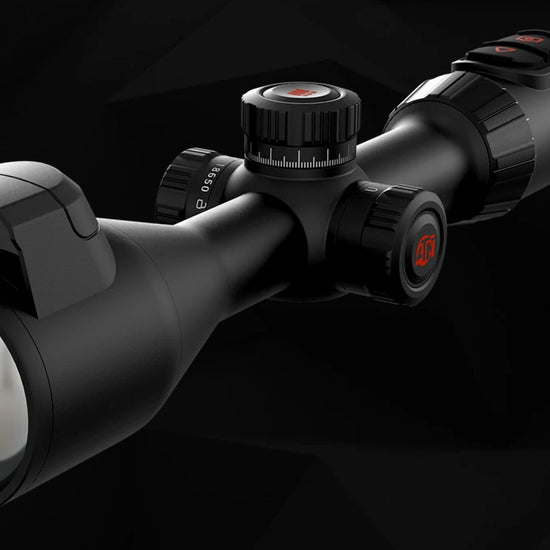

ATN THOR-6 LRF 640x512 | 3-24x ELITE THERMAL SCOPE












SKU TIWST6650LRF
Detector Type 12μm VOx Uncooled Focal Plane Array
Sensor Resolution 640×512
Refresh Rate 50 Hz
Thermal Sensitivity (NETD) ≤15mK
SharpIR© Yes
Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual
Lens System 50 mm (Ge); F/1.0
Field of View (H×V) 8.78° × 6.59°
Focus Mechanism Manual, Central Knob Control
Magnification 3-24×
Digital Zoom 1×, 2×, 4×, 8×
Zoom Type Step & Smooth Zoom
Detection Range 3650 m
Display Resolution 0.49" OLED, 1920×1080 Resolution
Eye Relief 50 mm
Diopter Range -5 to +5 D
Picture-in-Picture (PIP) Yes
Reticle Types 10 Styles
Reticle Transparency Control Yes
Zeroing Freeze Yes
Color Palettes White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Battery Type 1 × 18650 (Internal) & 1 × 18650 Rechargeable (Replaceable)
Battery Life ~9 hrs
Supports External Power Supply Yes, USB Type-C (5 VDC / 2A)
Standby / Sleep Mode Yes
Startup Time <7 seconds (instant from Standby)
Internal Storage Capacity 64 GB
Video / Audio Recording Yes
Internal Gallery Yes
Recoil Activated Video (RAV) Yes
Media Output USB Type-C
Built-in Wi-Fi (Hotspot) Yes
App (Apple Store / Google Play) Yes (ATN Connect 6 – iOS & Android)
Built-in Laser Rangefinder (LRF) Yes
LRF Range 1000 m
LRF Accuracy ±1 m
LRF Laser Specs 905 nm, Class 1 (Eye Safe)
Ballistic Calculator Yes
Hot Point Tracking Yes
Geomagnetic + Gyroscope Yes
Material Magnesium Alloy
Mounting 30 mm Rings (not included)
Weight 855 g / 1.89 lbs
Dimensions (L x W x H) 430×85×80 mm (16.93×3.35×3.15 in)
Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms
Operating Temperature -30°C to 55°C (-22°F to 131°F)
Waterproof / IP Rating IP67
Warranty 5 Year
