COMING SOON - INTEGRIX IX8 1-8X28 34MM FFP LPVO SCOPE, A1 MOA
Regular price
$1,399.97 USD
Sale price
$1,399.97 USD
Regular price
Save 0
Sold out
DESCRIPTION:

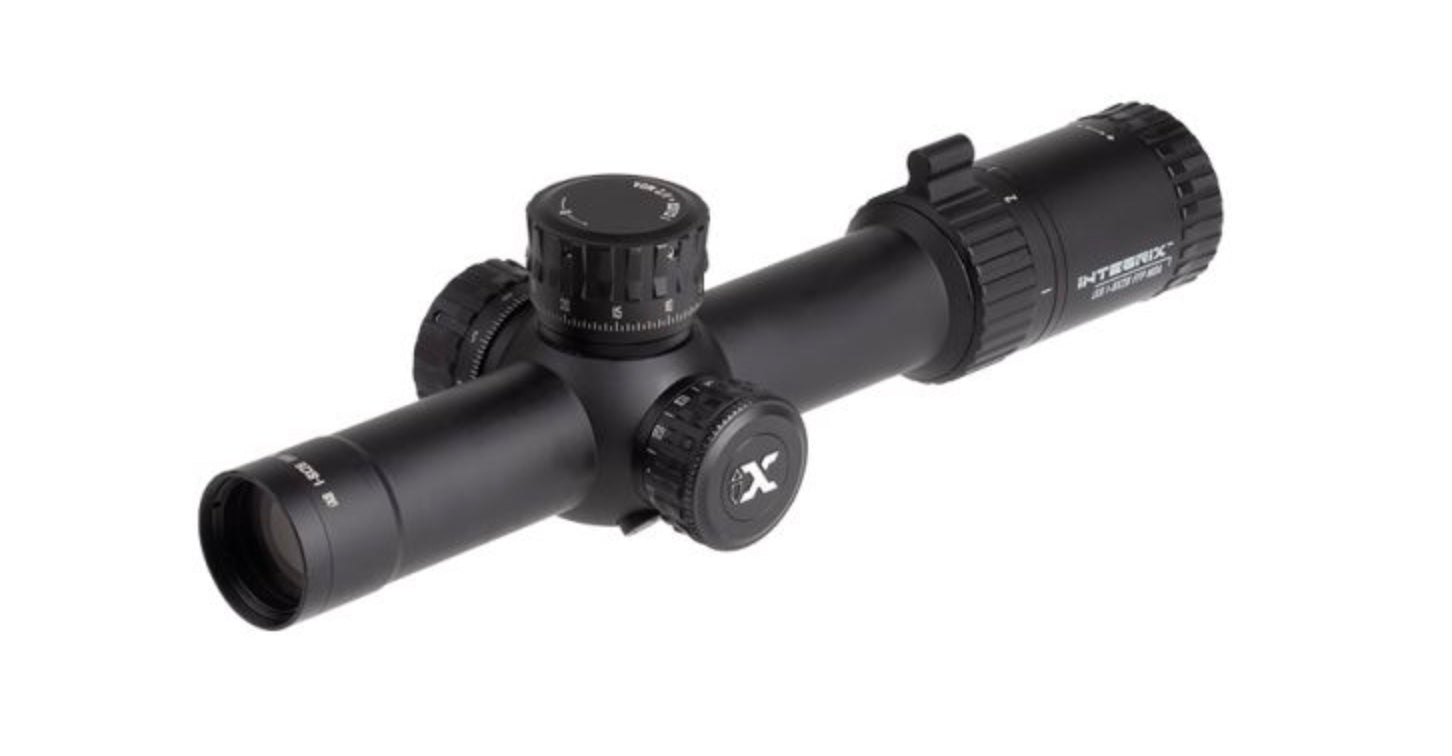

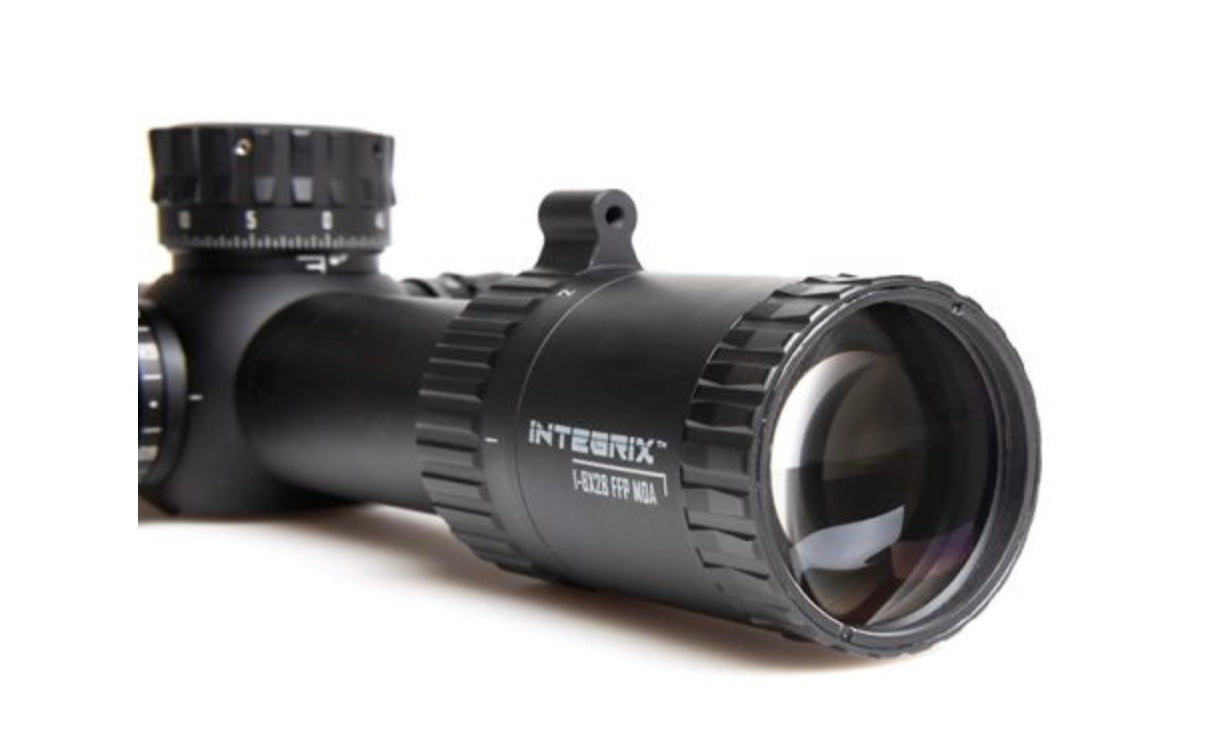

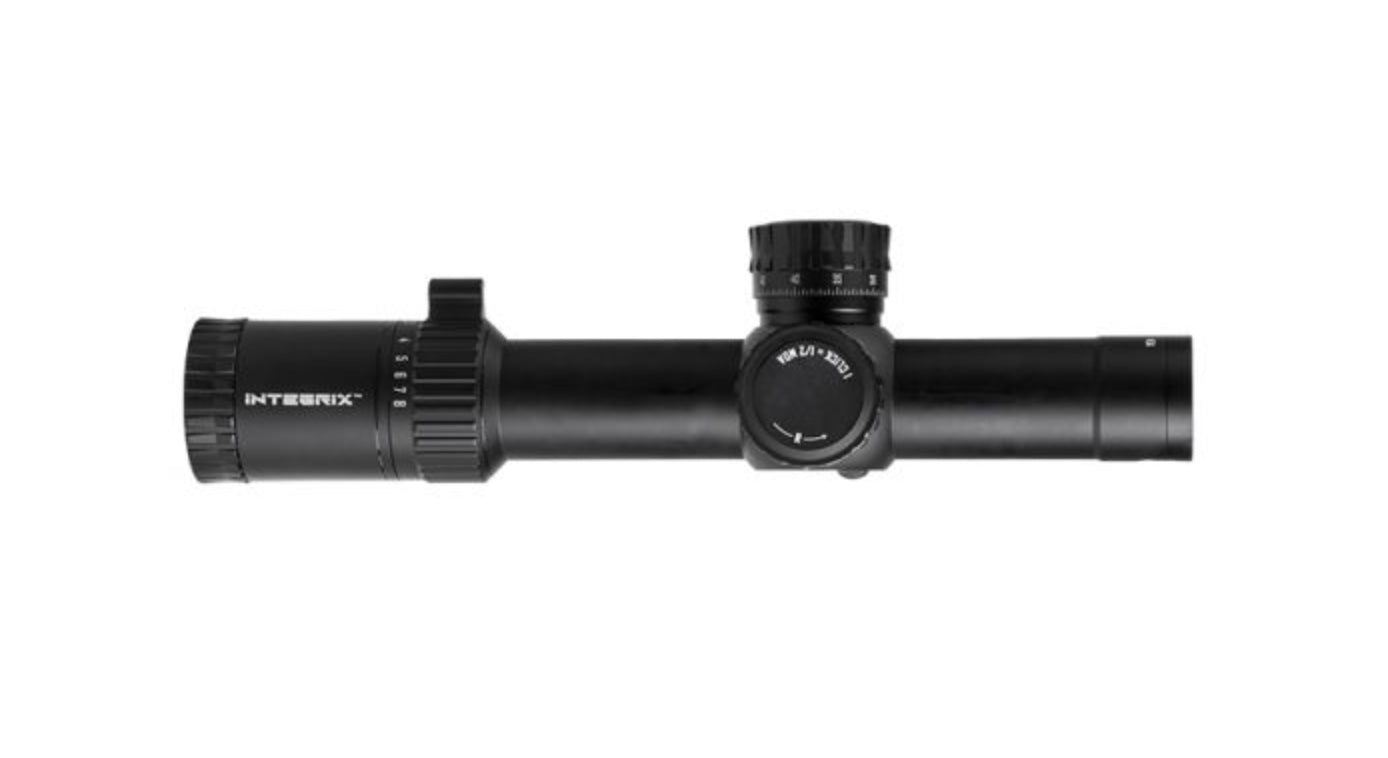

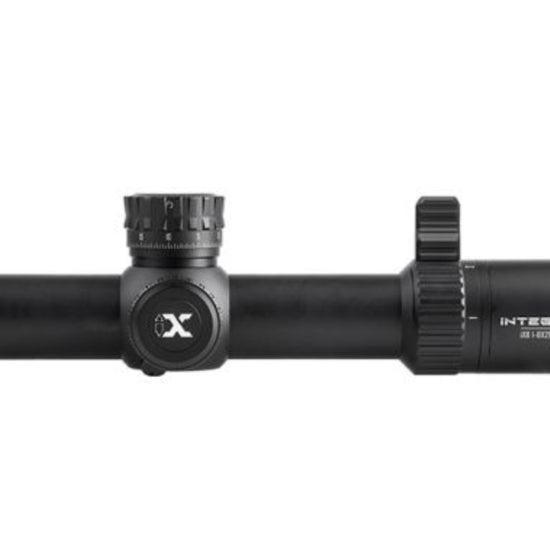

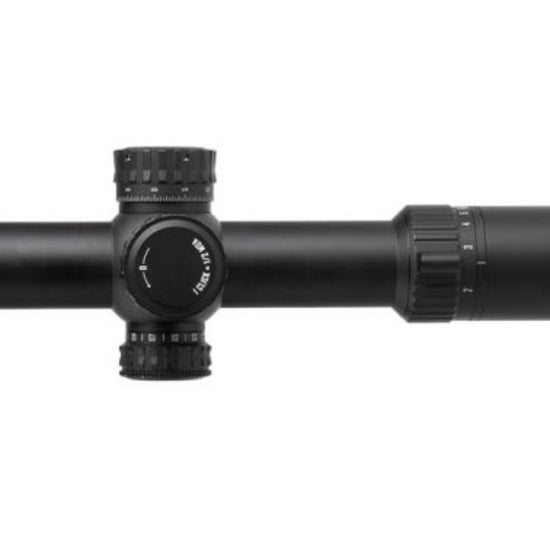

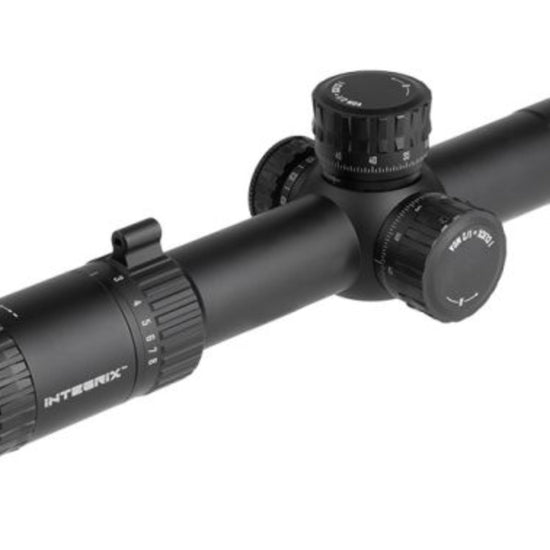

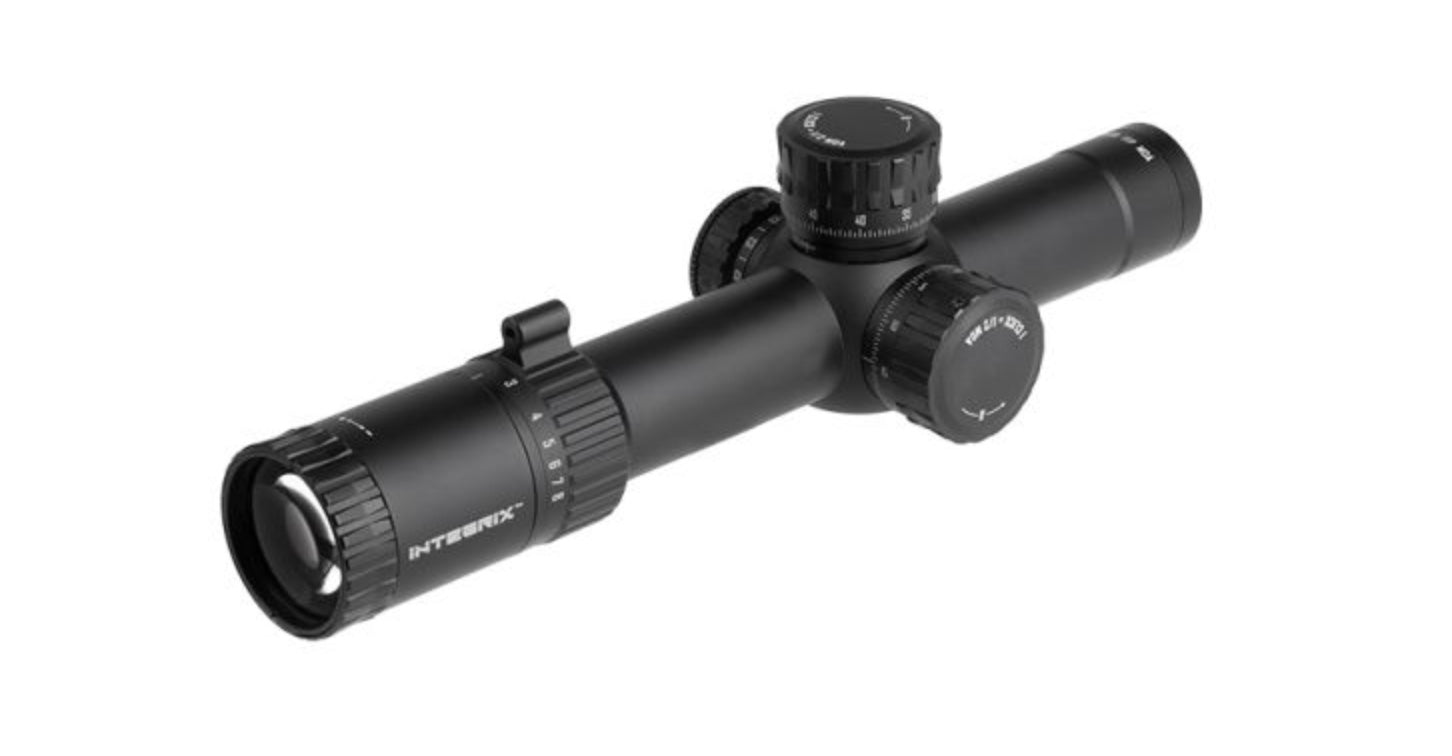

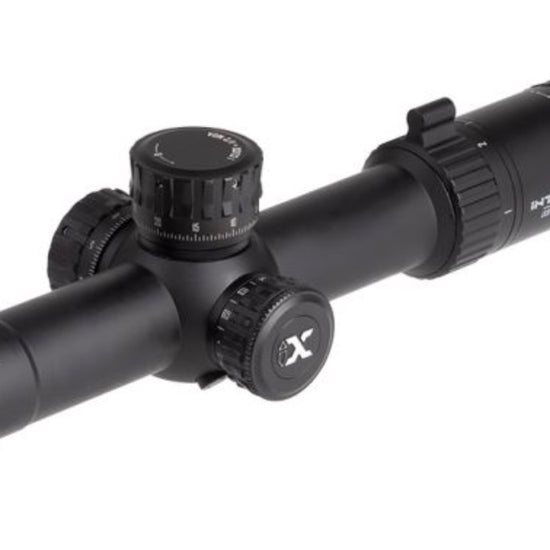

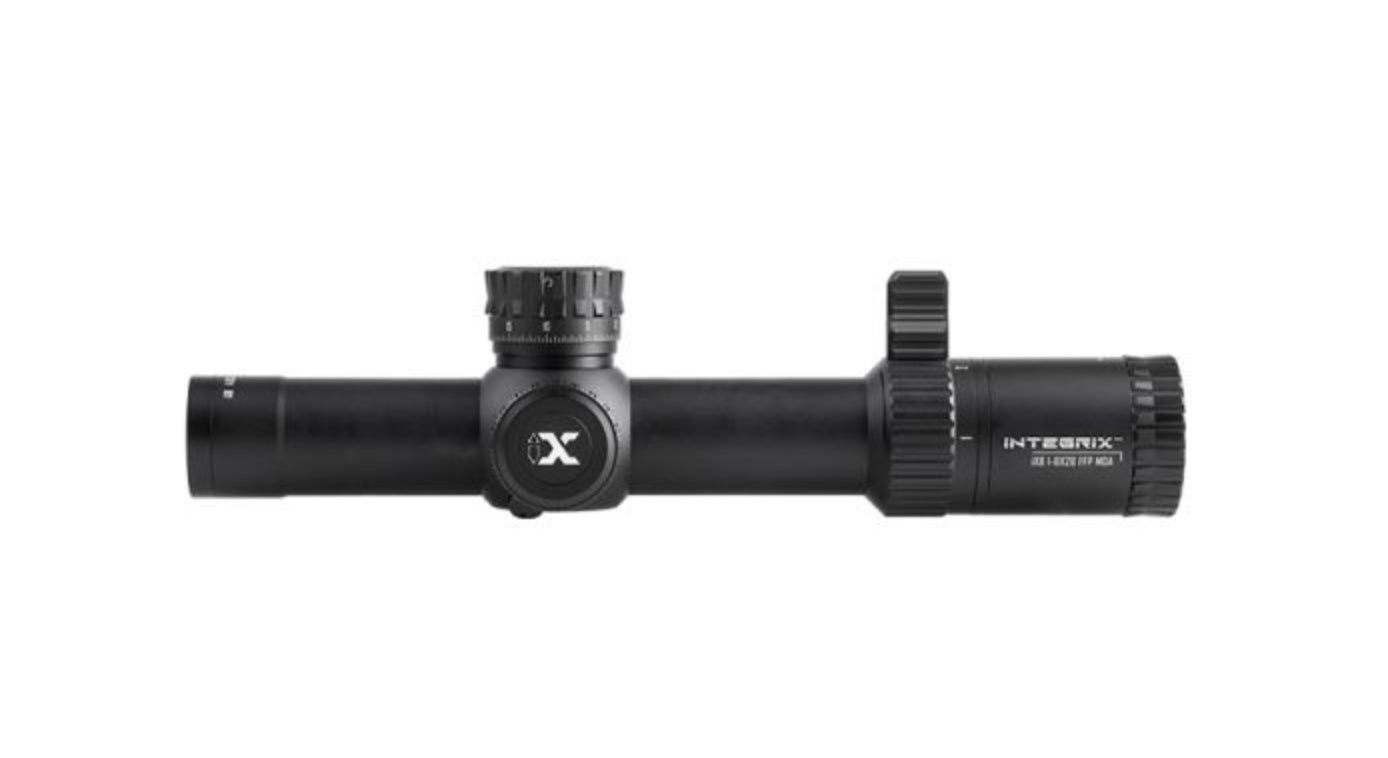

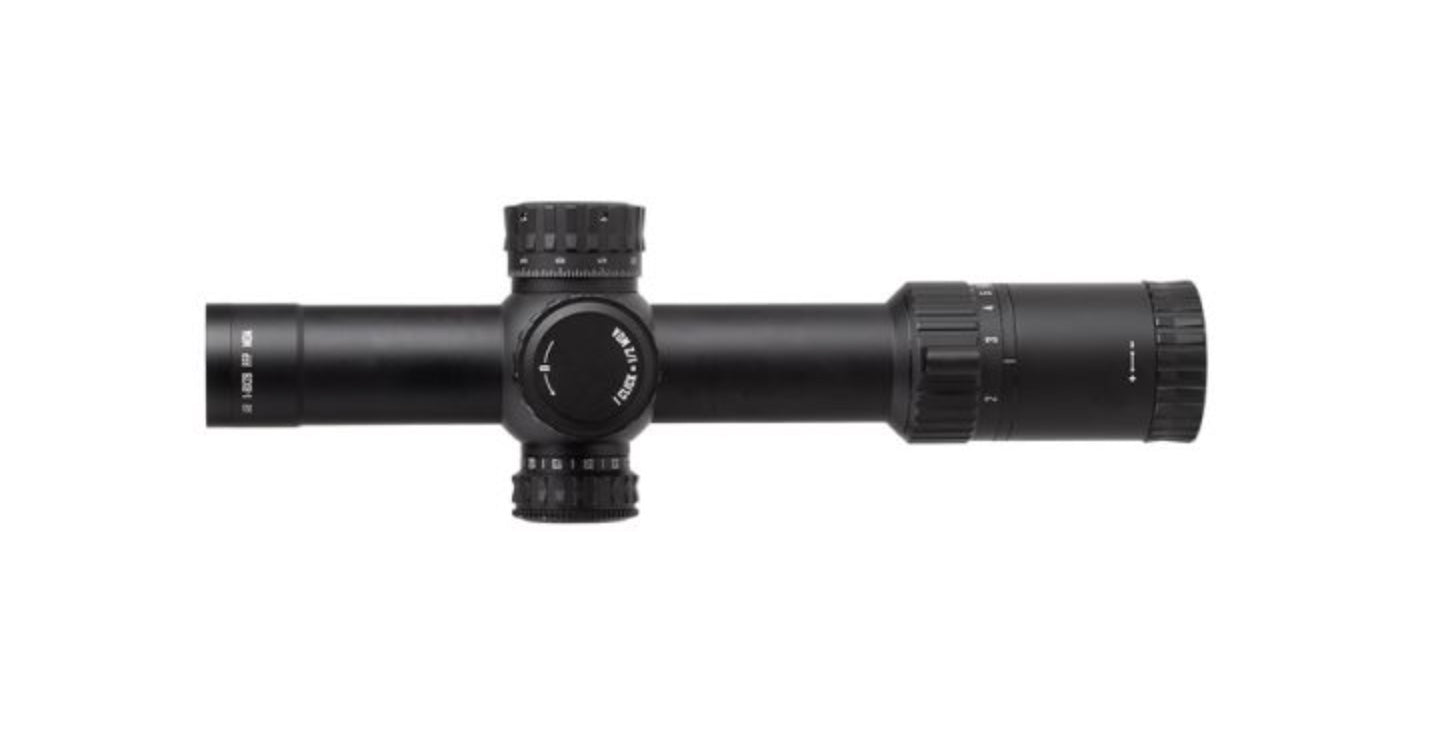

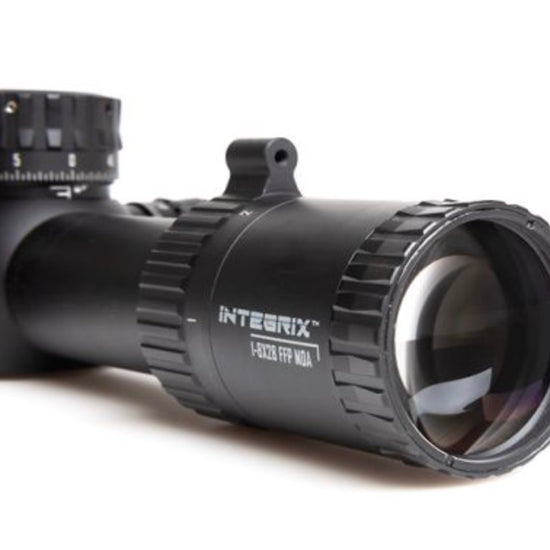

INTEGRIX iX8 1-8X28 34mm FFP LPVO Scope, A1 MOA
THE CULMINATION OF INTEGRATED & INTELLIGENT OPTICAL DESIGN & MANUFACTURING.
INTEGRIX is pinnacle performance. Years of experience were brought to the forefront through expert development and evaluation, countless testing, and meticulous manufacturing. German and Japanese glass lenses used exclusively in every INTEGRIX optic are individually centration tested, multi-coated for glare, reflection, and scratch resistance, and upon assembly are inspected for concentricity as a whole.
THE END RESULT? Optimized image quality with over 92% light transmission, edge-to-edge sharpness, minute distortion, and high contrast resolution.
DETAILS:
Individually Centration Tested German and Japanese Glass, Concentric Tested Post Assembly
- Multi-Coated Lenses for Glare, Reflection, and Scratch Resistance
- Low Aberration Optimized Image Quality with Over a 92% Light Transmittance
- Edge to Edge Sharpness, High Contrast, and High-Resolution Standard
- Reliable Adverse Temperature and Environmental Performance with -40° to 160° Fahrenheit Operational Range and IPX7 Waterproof Rating
- Rated, at Minimum, for .338 LAPUA Magnum

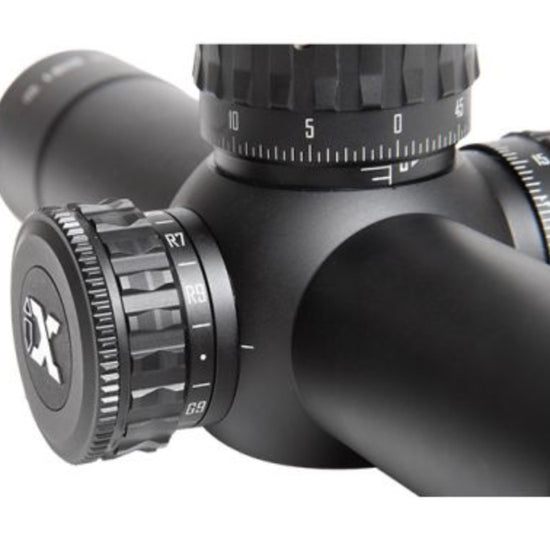

- Red and Green Reticle Illumination with 10 Brightness Intensity Settings
- 12 Hour Automatic Shutoff

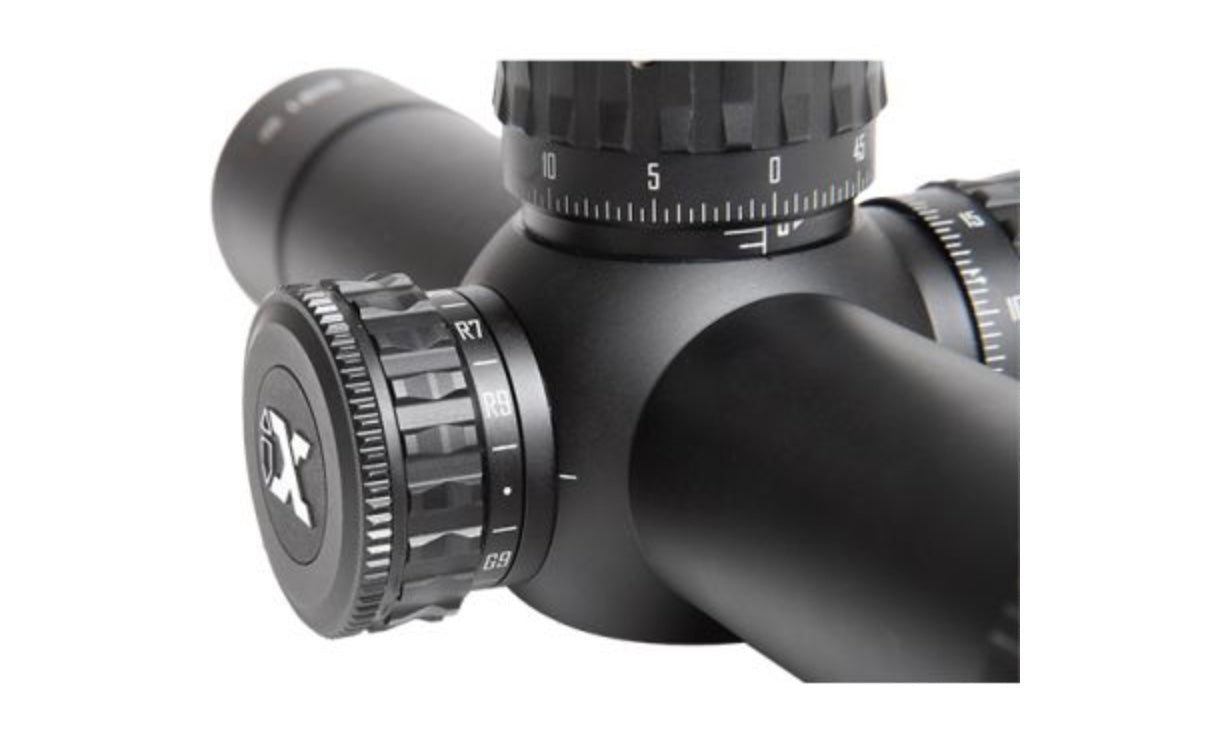

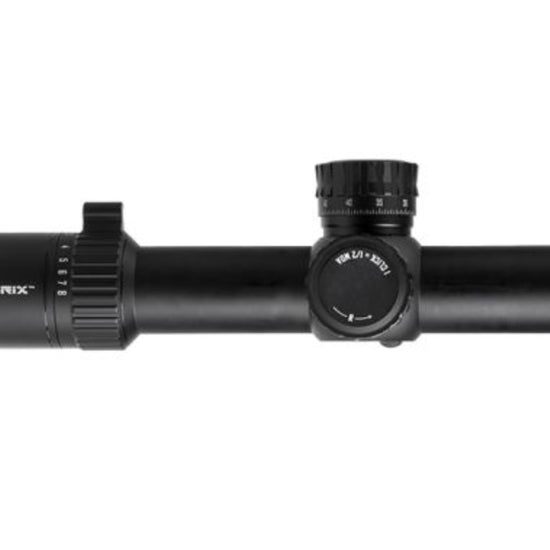

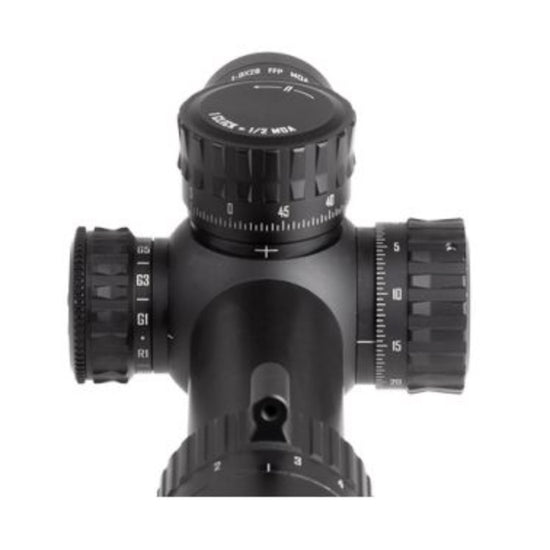

- Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use
- Serrated Power Ring and Rear Adjustable Eyepiece Diopter
- Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever

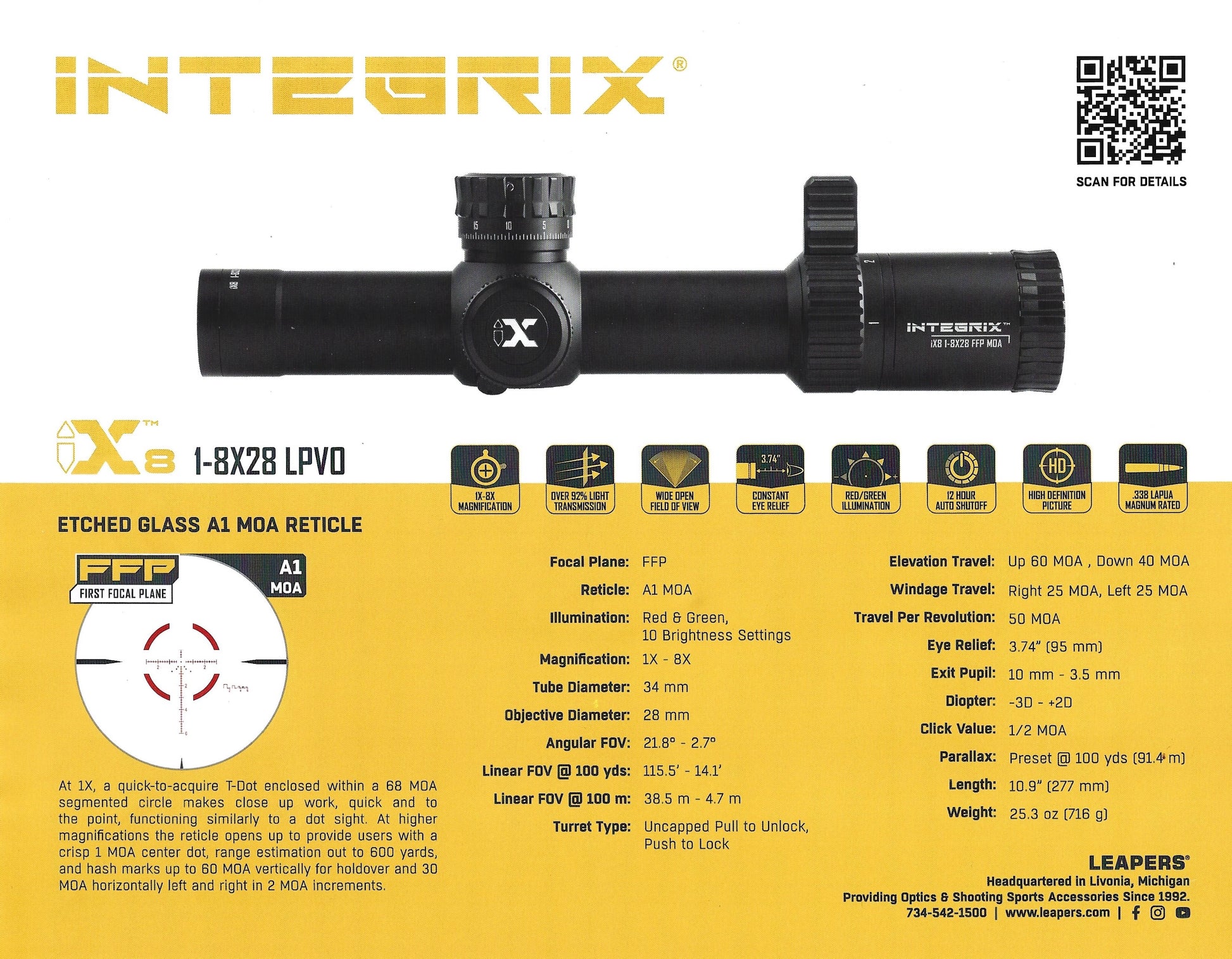

ETCHED GLASS RANGE-ESTIMATING A1 MOA RETICLE
At 1X, a quick-to-acquire T-Dot enclosed within a 68 MOA segmented circle makes close up work, quick and to the point, functioning similarly to a dot sight. At higher magnifications the reticle opens up to provide users with a crisp 1 MOA center dot, range estimation out to 600 yards, and hash marks up to 60 MOA vertically for holdover and 30 MOA horizontally left and right in 2 MOA increments.
| WARRANTY | Lifetime |
|---|---|
| MATERIALS | 6061-T6 Aluminum |
| COLOR(S) | Black |
| PARTS INCLUDED | Lens Cover, User Manual |
| FOCAL PLANE | FFP (First Focal Plane) |
| RETICLE | A1 MOA |
| RETICLE TYPE | Etched Glass |
| RETICLE ILLUMINATION | Yes |
| RETICLE COLOR(S) | Red and Green |
| BRIGHTNESS SETTINGS | 10 |
| BRIGHTNESS MODE(S) | Manual |
| AUTO SHUTOFF (HRS) | 12 |
| WATERPROOF RATING | IPX7 |
| OPERATING TEMPERATURE HIGH (⁰F) | 160 |
| OPERATING TEMPERATURE LOW (⁰F) | -40 |
| OPERATING TEMPERATURE HIGH (⁰C) | 70 |
| OPERATING TEMPERATURE LOW (⁰C) | -40 |
| BALLISTIC DROP COMPENSATION | No |
| RANGE ESTIMATION | Yes |
| BATTERY LOADING | Left Side Turret |
| BATTERY TYPE | CR2032 3V |
| CLICK VALUE @ 100 YARDS (MOA) | 1/2 |
| WINDAGE ADJUSTMENT LEFT (MOA) | 25 |
| WINDAGE ADJUSTMENT RIGHT (MOA) | 25 |
| WINDAGE ADJUSTMENT PER REVOLUTION (MOA) | 50 |
| ELEVATION ADJUSTMENT UP (MOA) | 60 |
| ELEVATION ADJUSTMENT DOWN (MOA) | 40 |
| MAGNIFICATION MAX. | 8 |
| MAGNIFICATION MIN. | 1 |
| ANGULAR FOV LOW MAG. (DEGREES) | 21.8 |
| ANGULAR FOV HIGH MAG. (DEGREES) | 2.7 |
| LINEAR FOV LOW MAG. (FT @ 100 YDS) | 115.5 |
| LINEAR FOV HIGH MAG. (FT @ 100 YDS) | 14.1 |
| LINEAR FOV LOW MAG. (M @ 100 M) | 38.5 |
| LINEAR FOV HIGH MAG. (M @ 100 M) | 4.7 |
| LIGHT TRANSMISSION (%) | 92% |
| EYE RELIEF HIGH MAG. (IN) | 3.5 |
| EYE RELIEF LOW MAG. (IN) | 3.7 |
| EYE RELIEF HIGH MAG. (MM) | 90 |
| EYE RELIEF LOW MAG. (MM) | 94 |
| PARALLAX CONTROL | Fixed |
| PARALLAX PRESET (YDS) | 100 |
| PARALLAX PRESET (M) | 91.4 |
| EXIT PUPIL HIGH MAG. (MM) | 3.5 |
| EXIT PUPIL LOW MAG. (MM) | 11 |
| OBJECTIVE LENS DIAMETER (MM) | 28 |
| DIOPTER ADJUSTMENT | +3D ~ +2D |
| DIOPTER TYPE | Friction Secured |
| CALIBER RATING | .338 Lapua Magnum |
| WEIGHT (OZ) | 25.3 |
| WEIGHT (G) | 716 |
ACCESSORIES INCLUDED
Throw Lever
Flip-open Lens Caps
Hex Wrench 2 mm
Hex Wrench 1.5 mm
CR2032 Battery
Cleaning Cloth
User Manual
Flip-open Lens Caps
Hex Wrench 2 mm
Hex Wrench 1.5 mm
CR2032 Battery
Cleaning Cloth
User Manual
