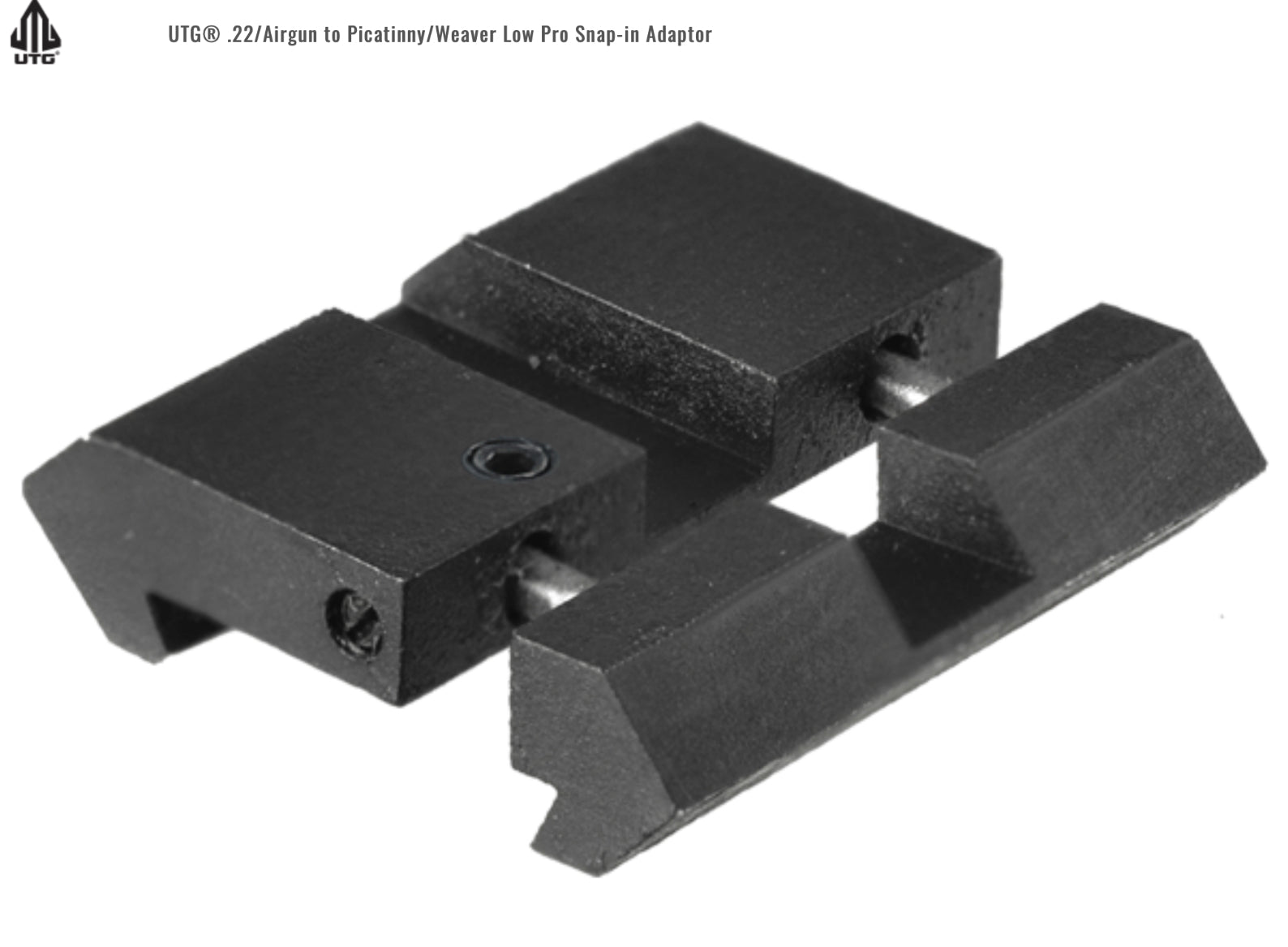

UTG 11MM DOVE TAIL TO PICATINNY/WEAVER LOW PROFILE SNAP IN ADAPTER - MNT-DT2PW01

DETAILS

• Adapts Most Picatinny Rings and Mounts to Flat Dovetail Rail Interface

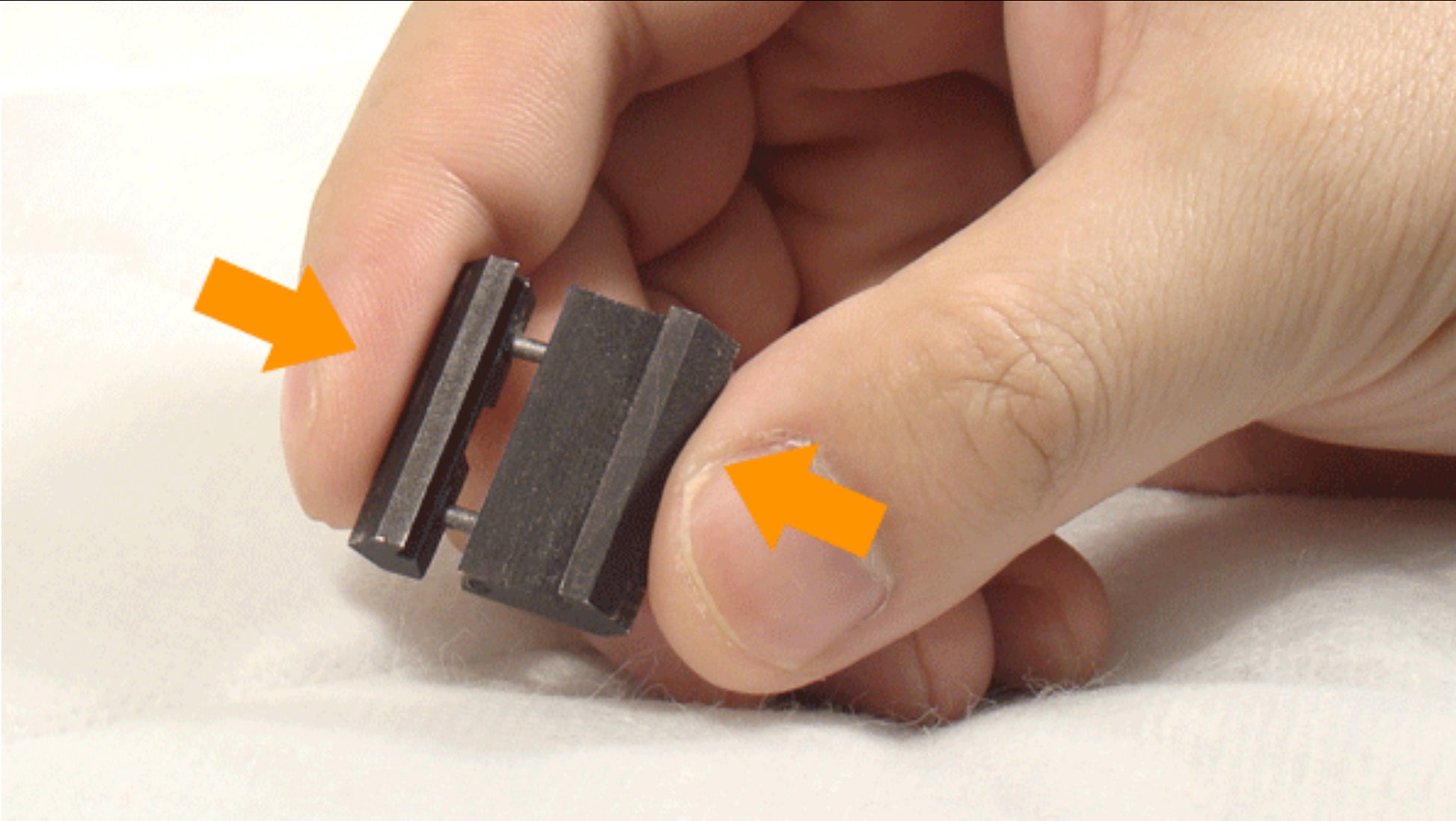

• Spring-loaded Adjustable Dovetail Width from 9mm to 11mm
• Removable and Threaded Vertical Stop Pin Provides Added Retention for Dovetail Rails Equipped with Stop Pin Holes

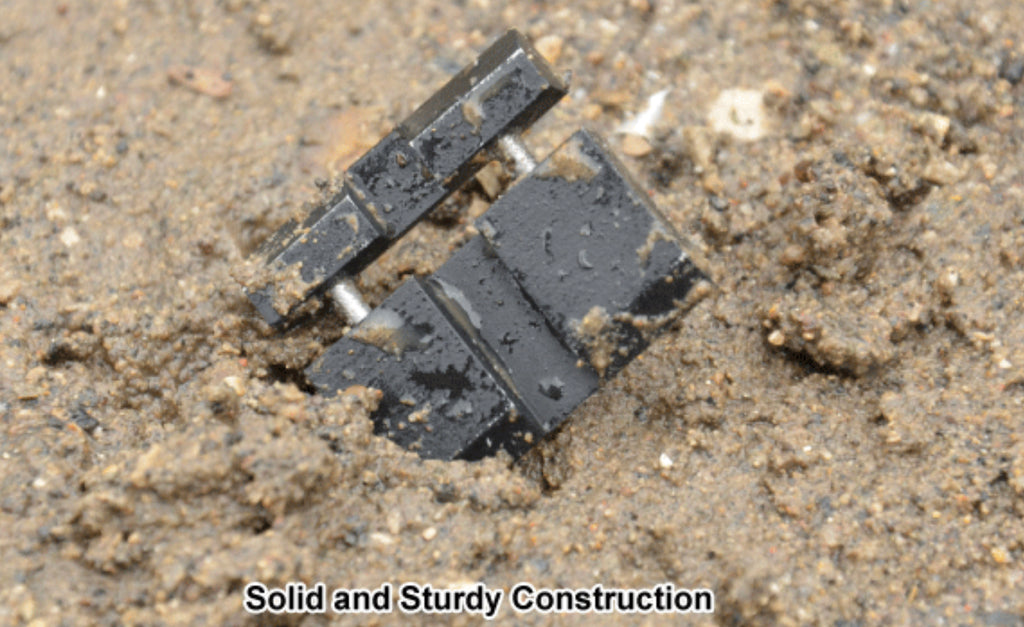

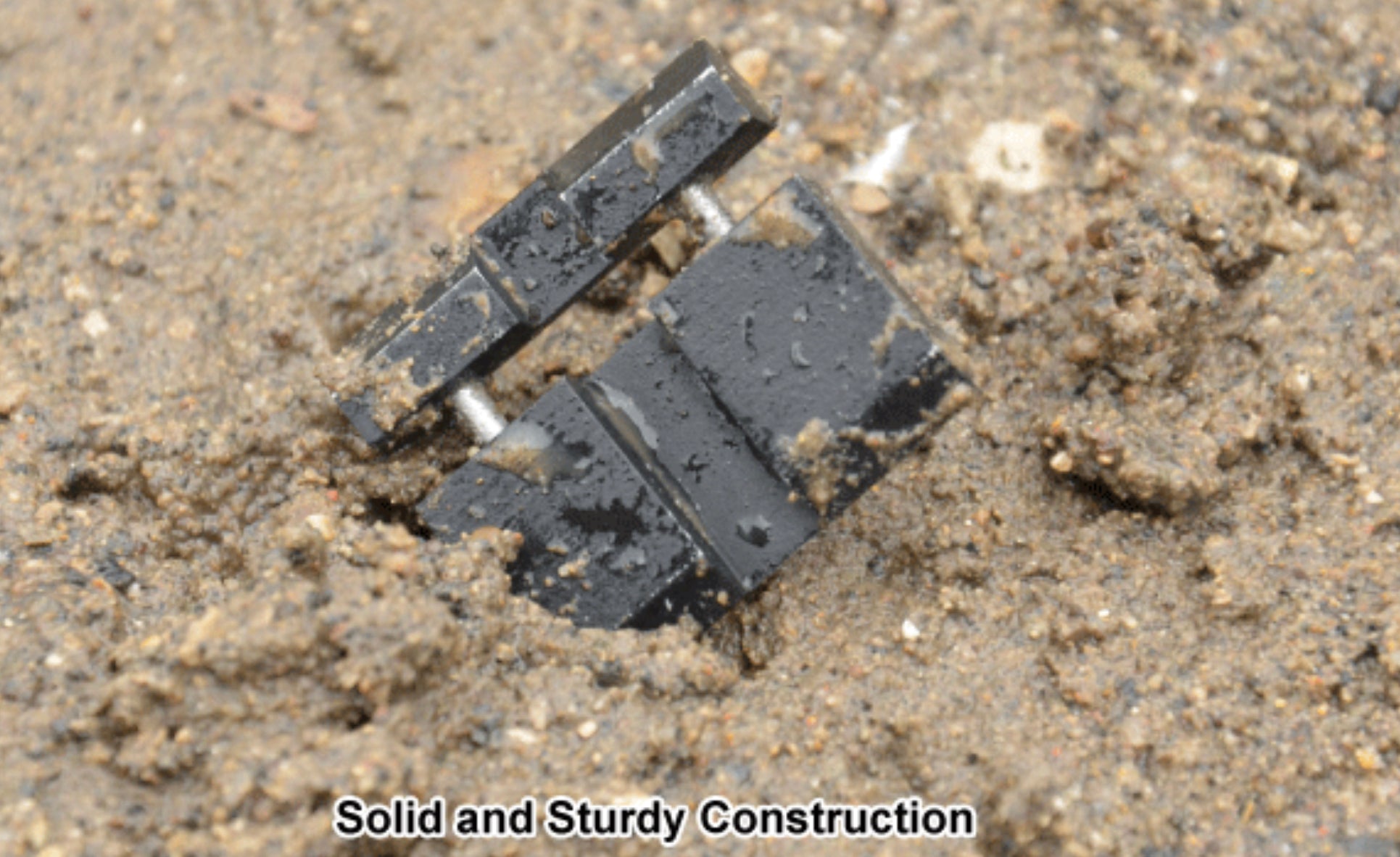

• Lightweight Aluminum and Steel Construction
• Includes Two Adaptors
• US PAT. 8752325

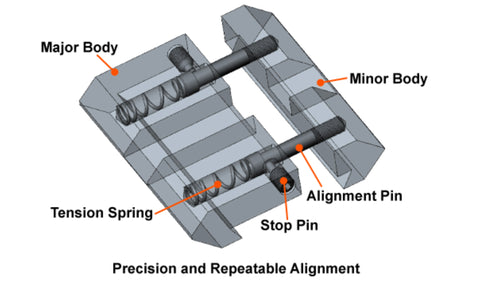

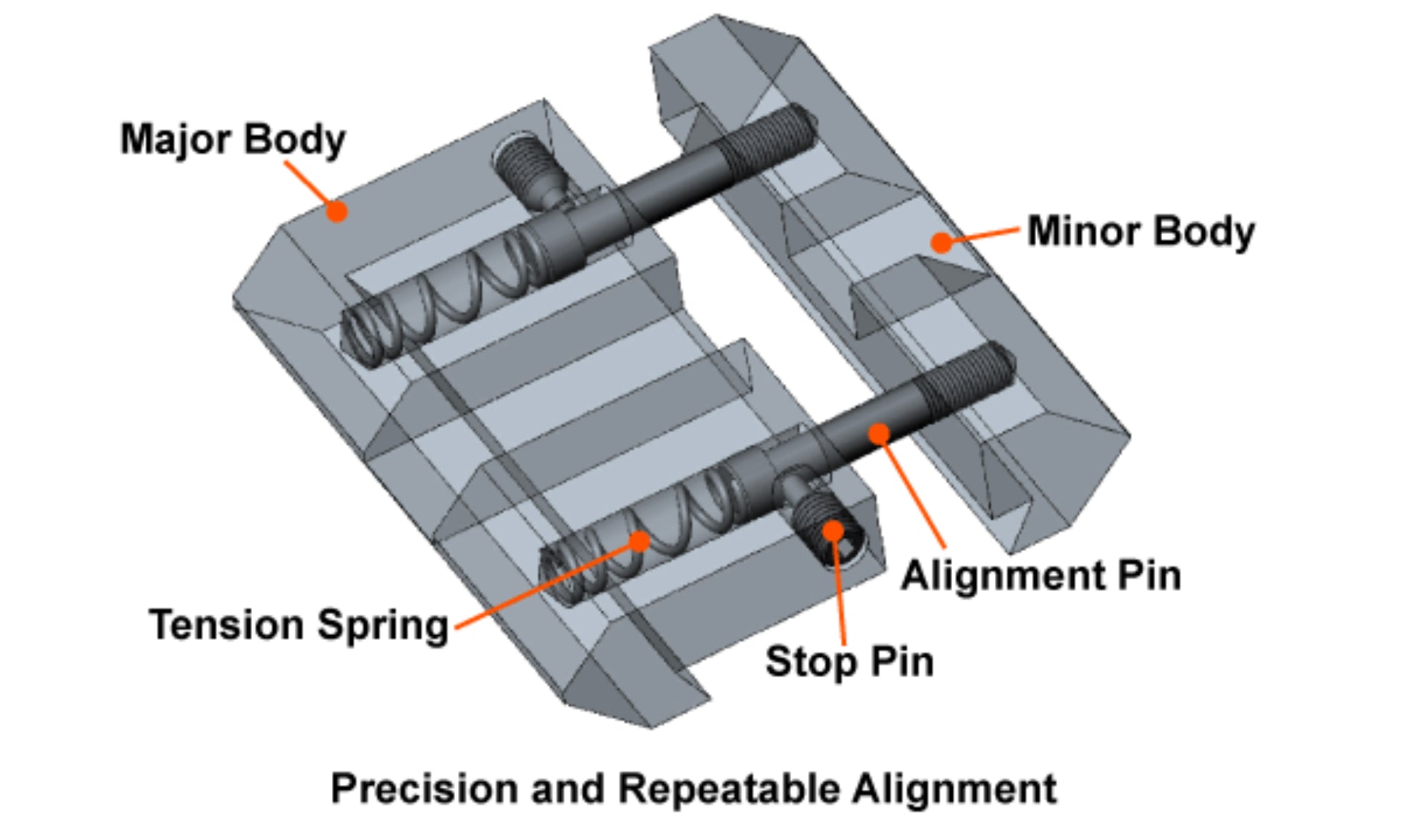

1. Major Body
2. Minor Body
3. Tension Spring
4. Stop Pin
5. Alignment Pin

INSTALLATION

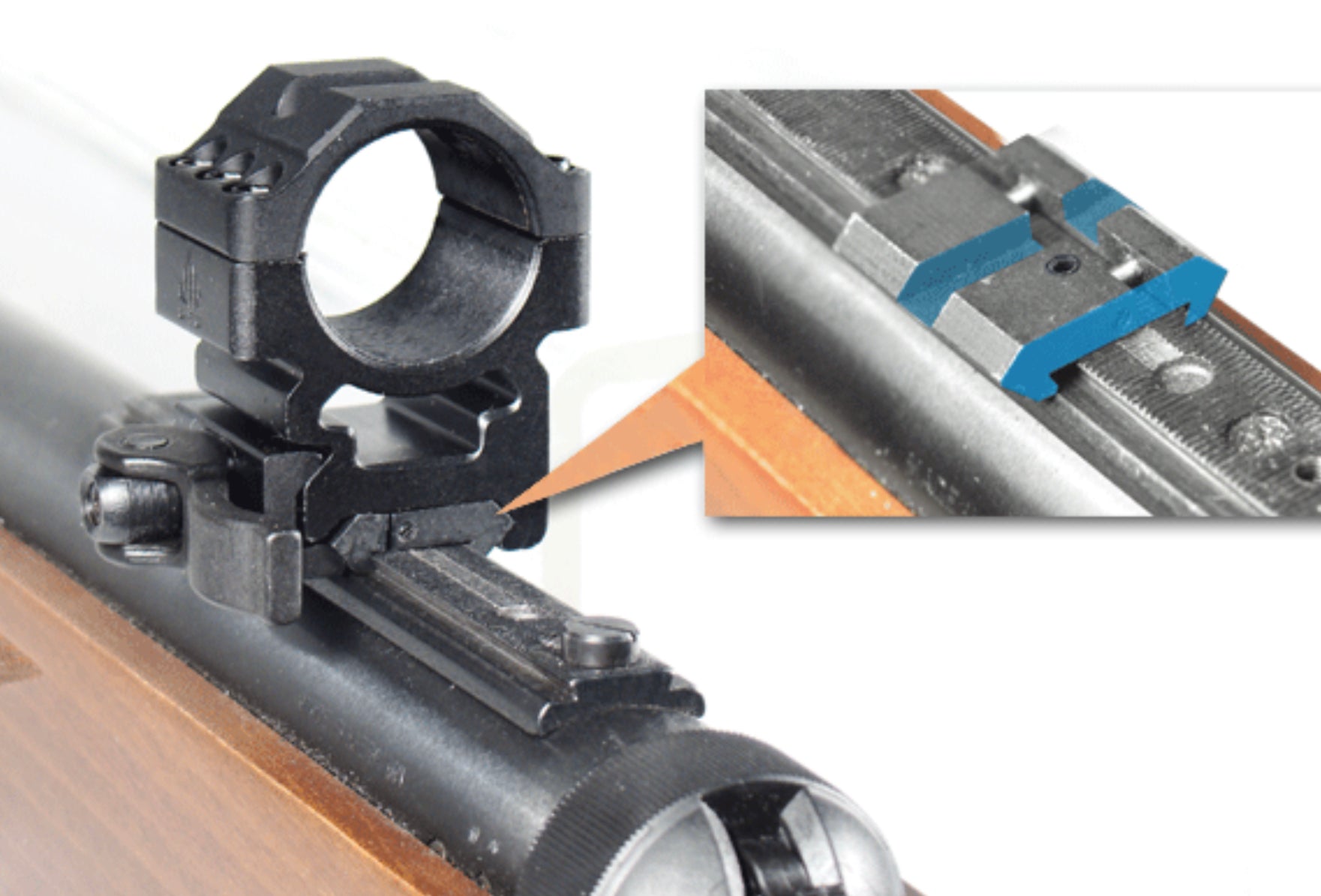

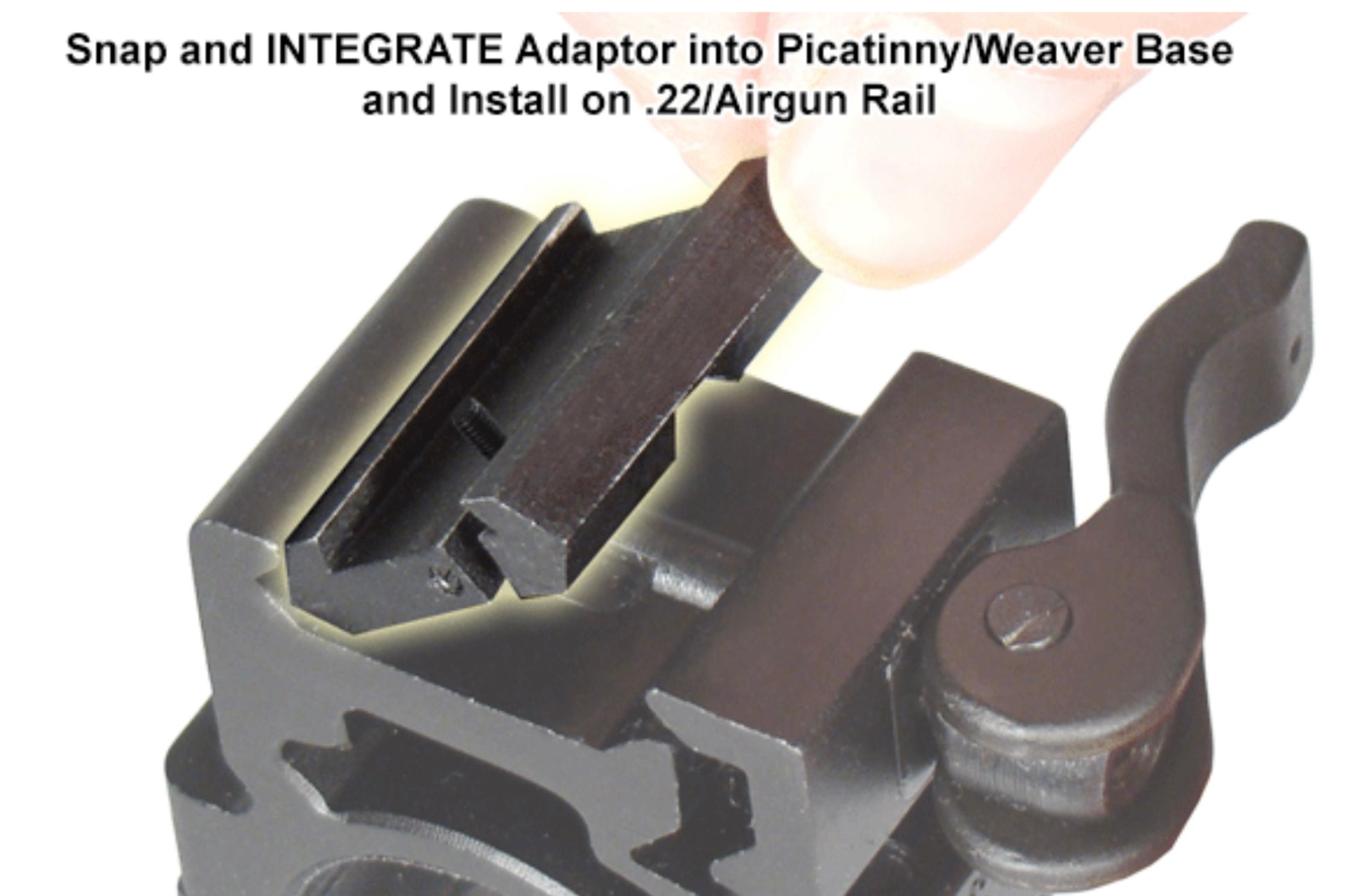

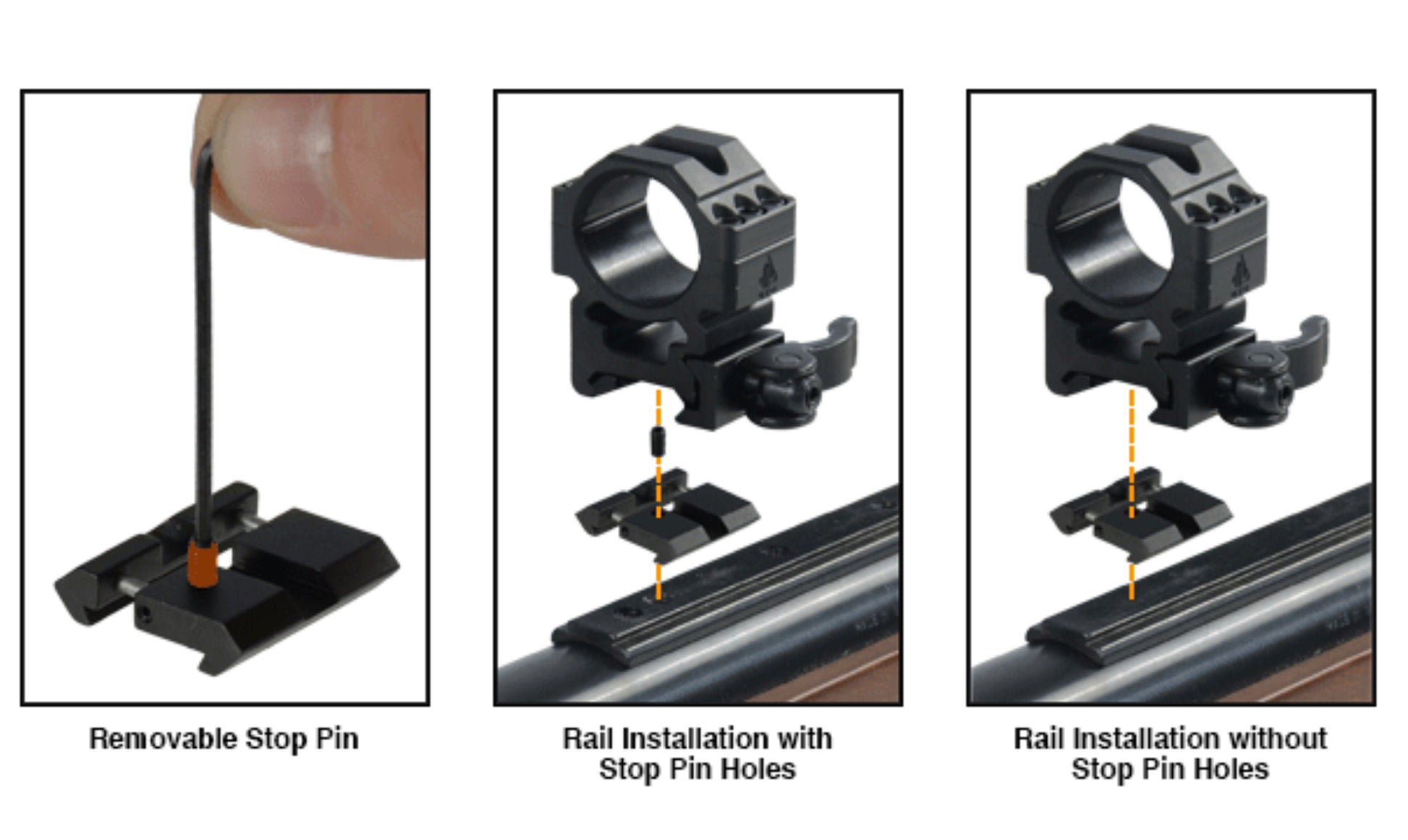

Adjust Height or Remove Stop Pin if Applicable. Seat Adapter into Place Over Picatinny Slot Lug.

Securely Tighten Mount Ensuring Adaptor Closes Around and Stays Evenly Seated with Dovetail Rail.

SPECIFICATION

DIMENSIONS

MNT-DT2PW01
