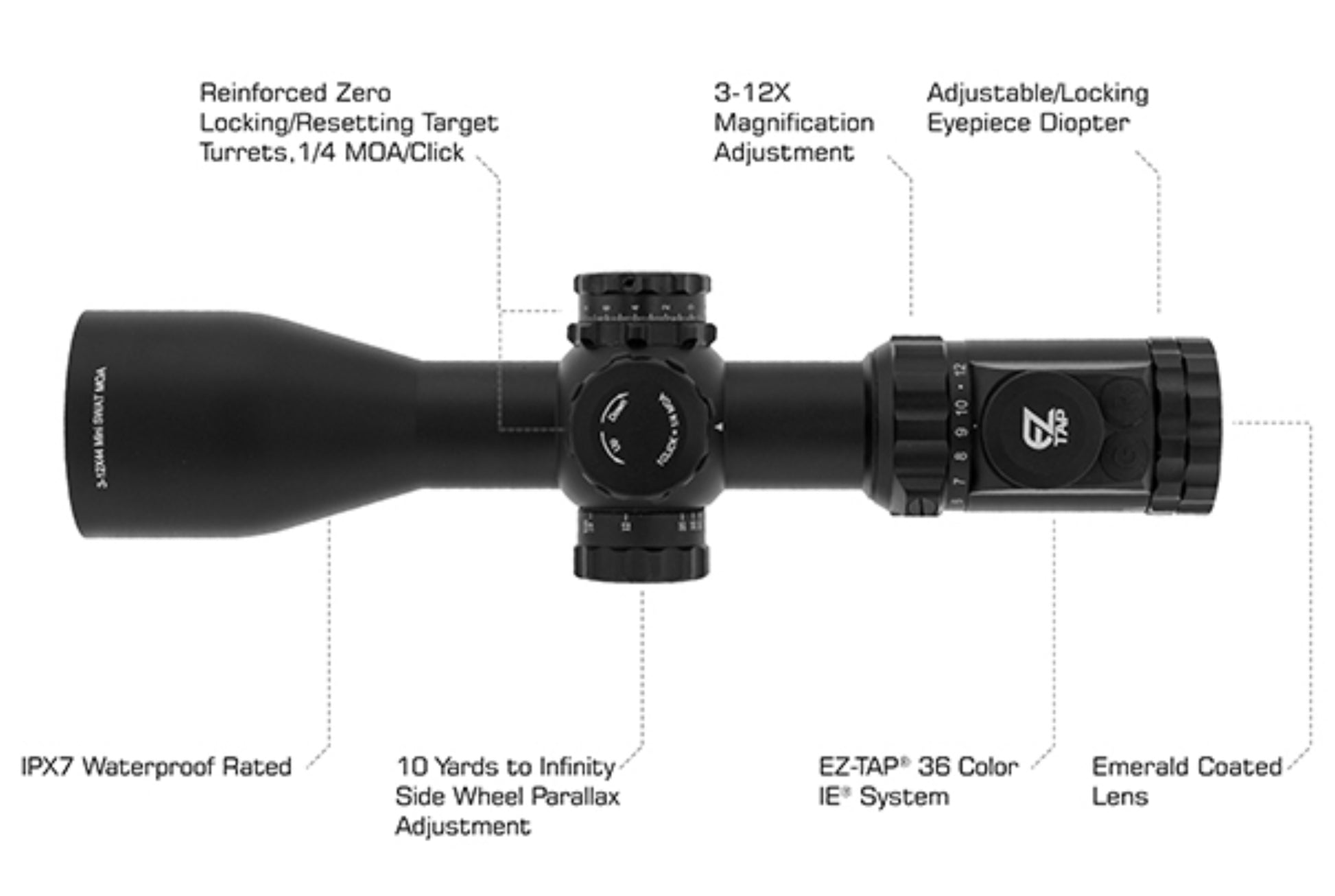

Built on TRUE STRENGTH® Platform and Completely Sealed and Nitrogen Filled for Reliable Shockproof and Zero Holding Performance

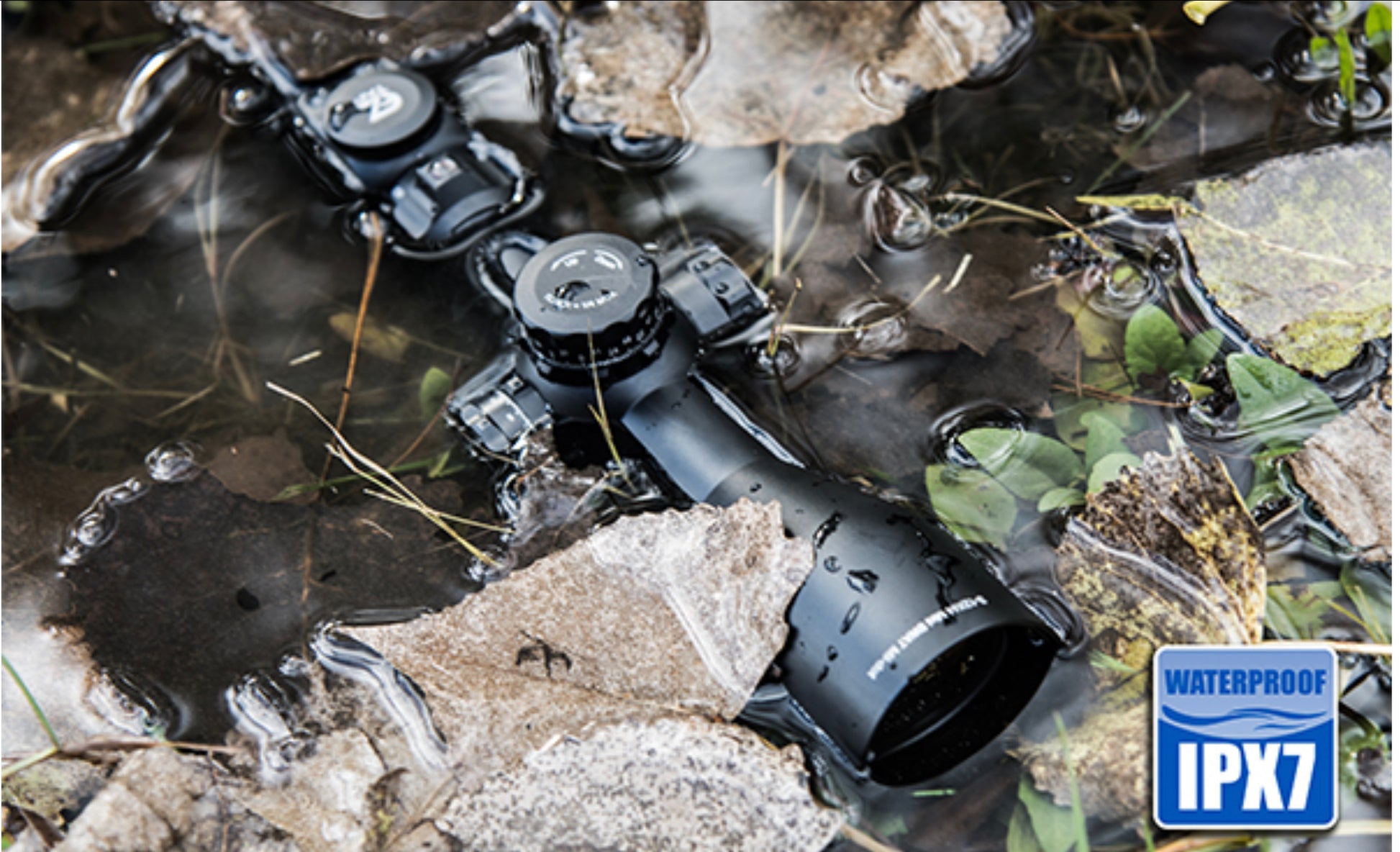

IPX7 Waterproof Rated
30mm Tube with Best in Class Emerald Lens Coatings to Achieve Maximum Light Transmission for Best Clarity

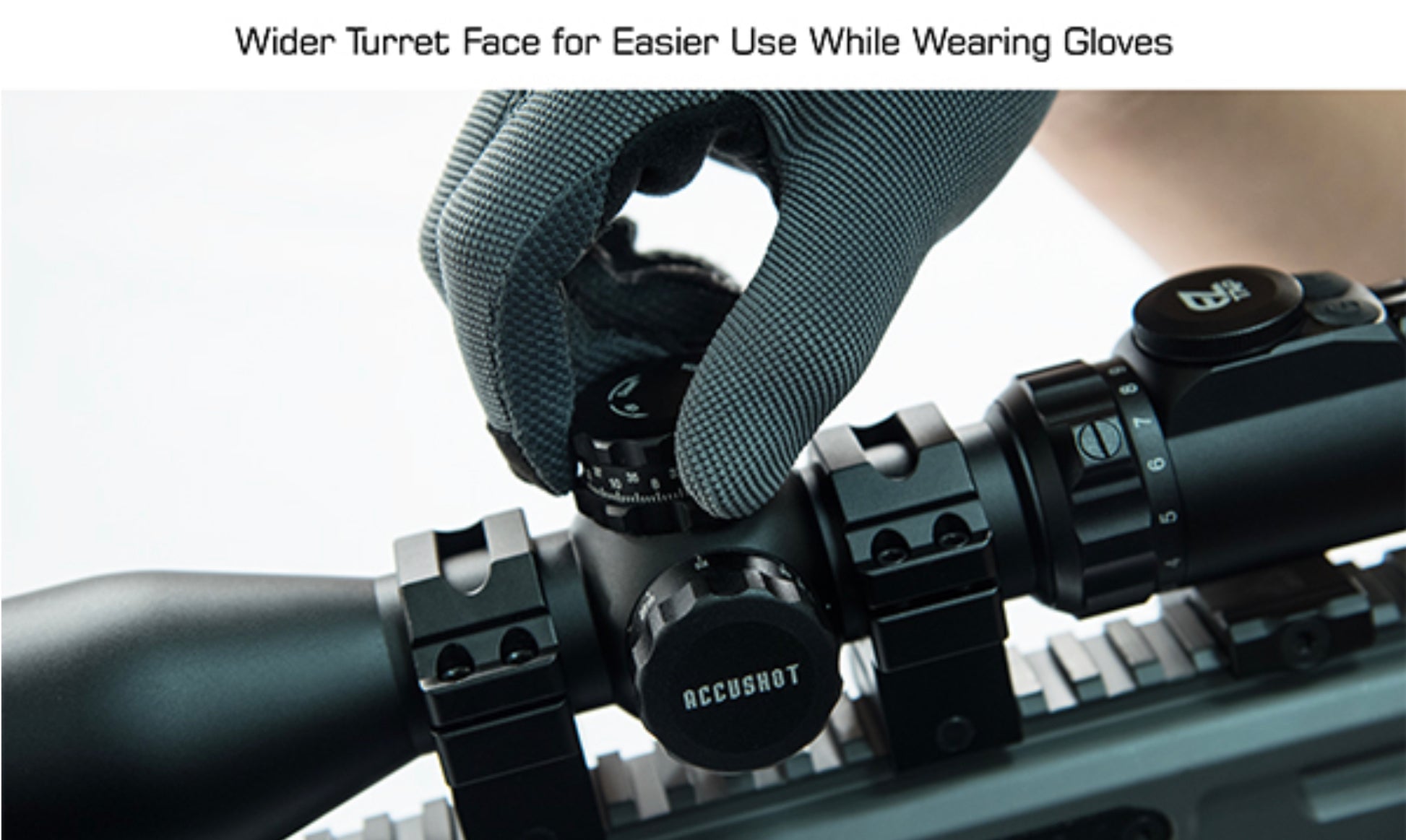

Premium Low Top Zero Lockable and Resettable Target Turrets with Precise 1/4 MOA per Click Adjustment
UMOA Range Estimating Etched Glass Reticle

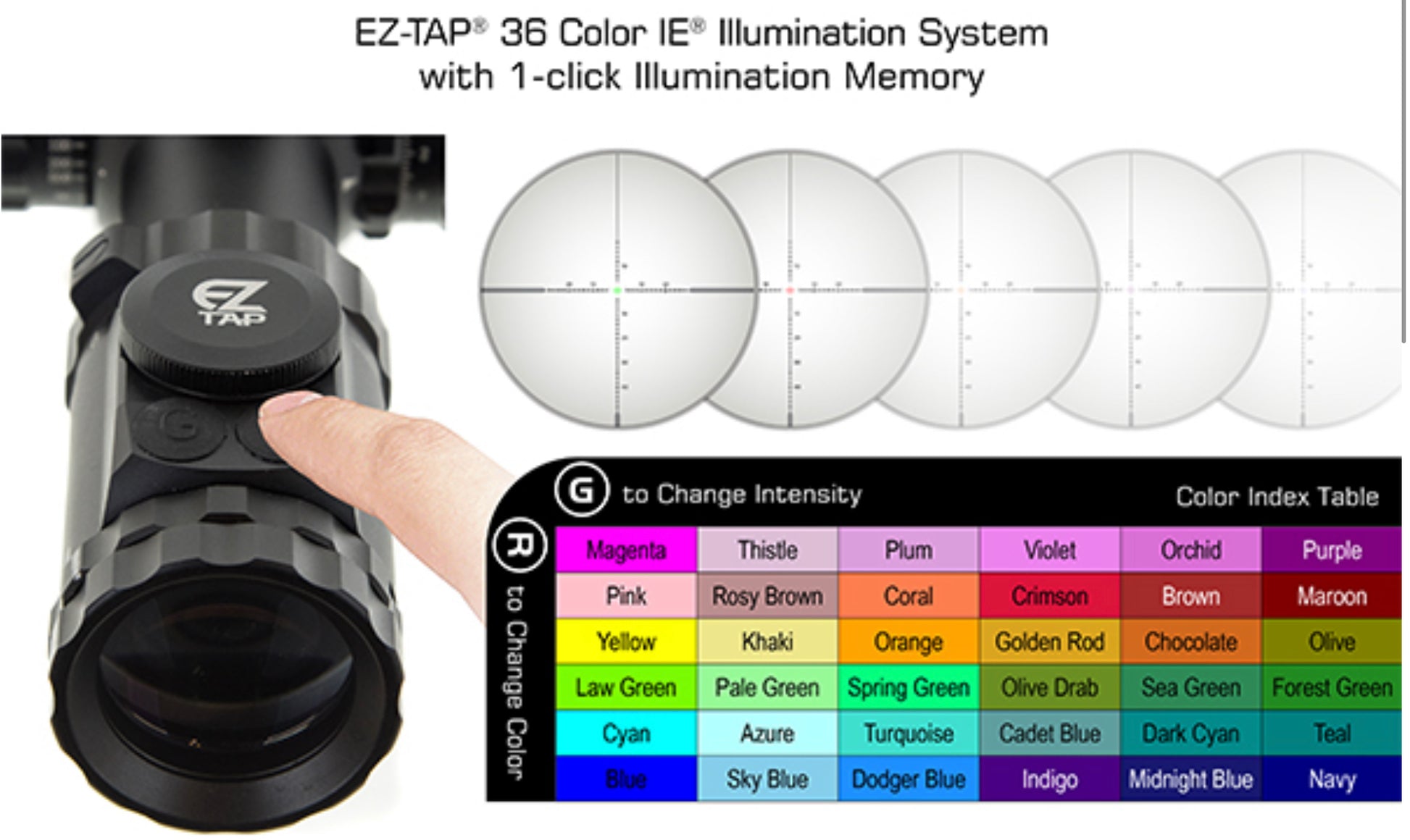

Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color and 36 Multi-Color Mode to Accommodate All Weather/Light Conditions (US Pat. 8437079; EU Pat. EP2520894)
1-Click Illumination Memory Feature Gets the User Right Back to the Color/Brightness Setting Last Used

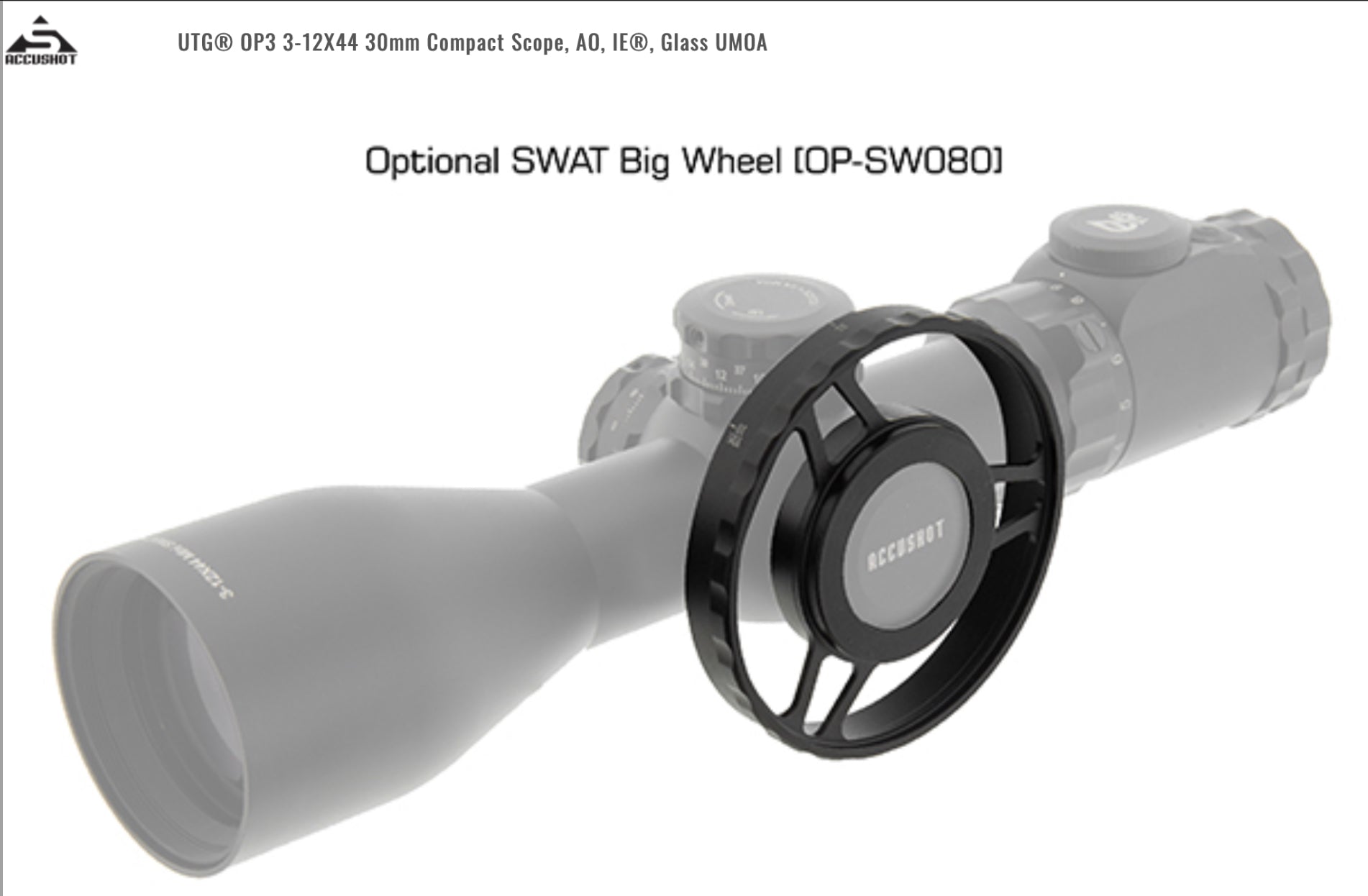

Low Top Side Wheel Adjustable Turret (SWAT) for Parallax Adjustment from 10 Yards to Infinity
Fine Tune Adjustable/Lockable Eyepiece Diopter

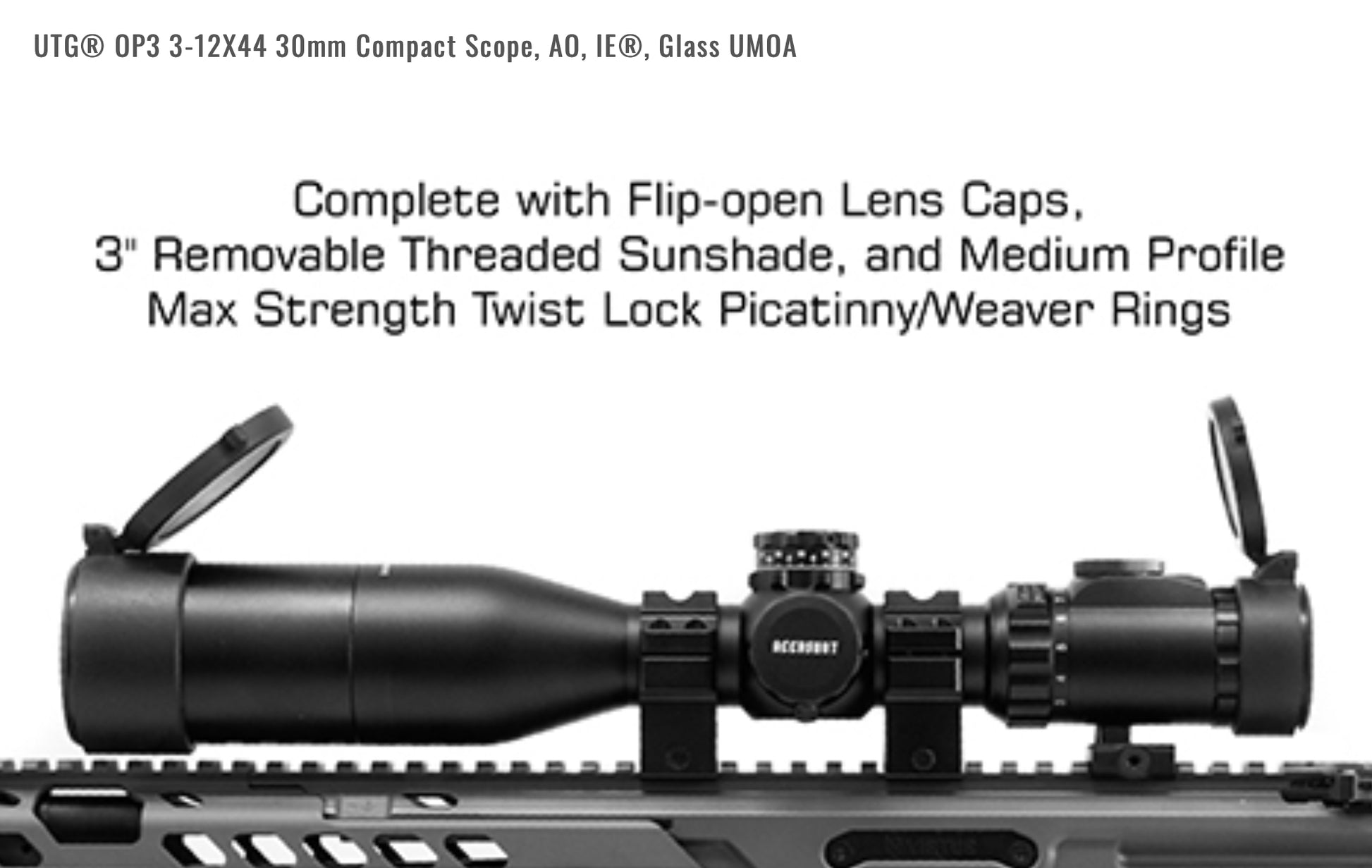

Complete with Flip-open Lens Caps, 3" Removable Threaded Sunshade, Cleaning Cloth, and Medium Profile Max Strength Twist Lock Picatinny/Weaver Rings
ETCHED GLASS UMOA RETICLE

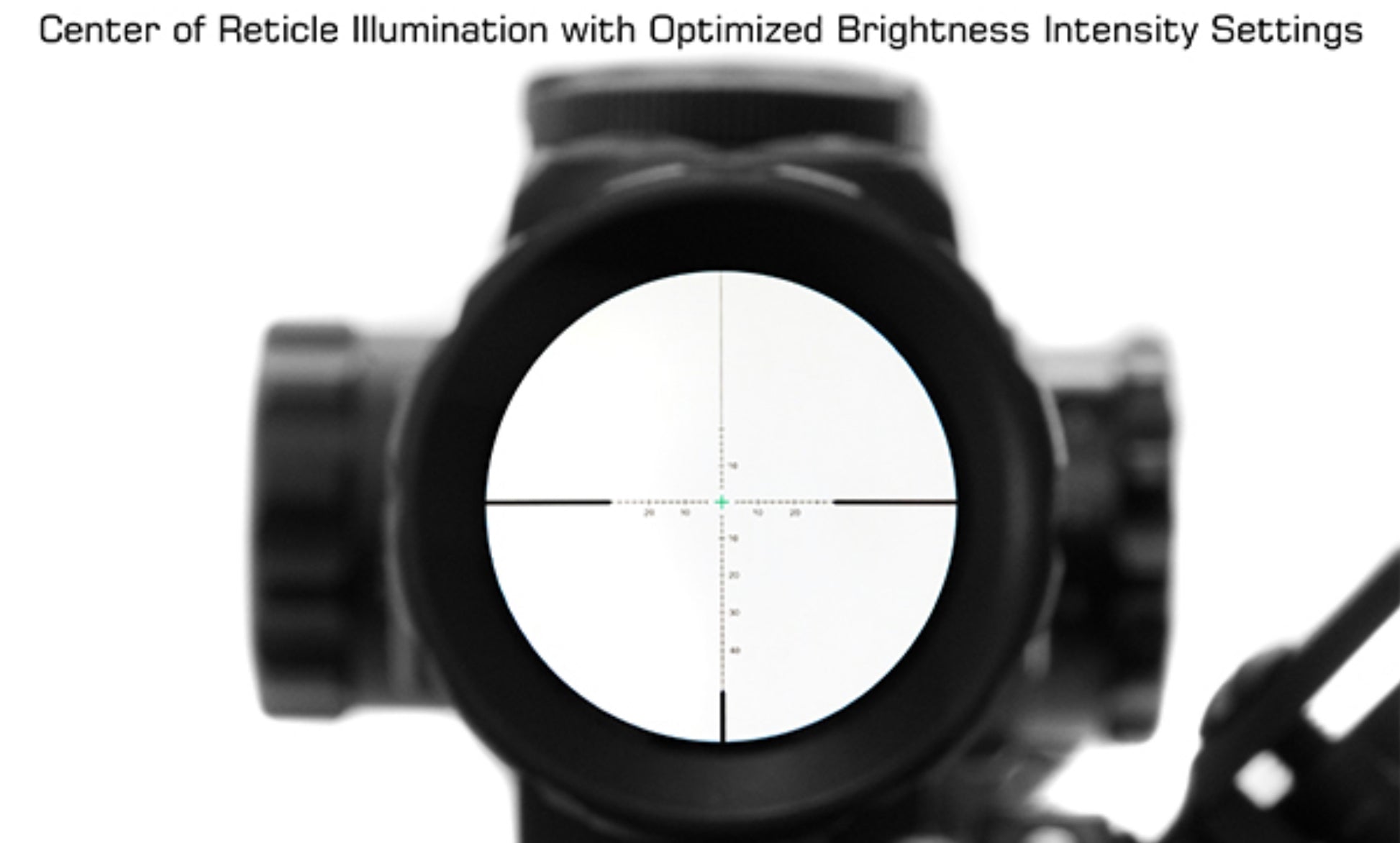

The UMOA reticle features hash marks at minute of angle increments for precise range estimation and bullet drop and wind drift compensation. This reticle is the best choice for long-range precision shooters who want clear adjustments and to rapidly calculate holds. The reticle’s center crosshair can be illuminated to assist aiming under different light conditions.
At 10X magnification at 100 yards, the reticle provides a 4 MOA (from end to end) center cross and equally distanced hash marks at 2 MOA increments all the way up to 50 MOA for holdover, 20 MOA for hold under, and 30 MOA on each side for wind drift. The center cross can be illuminated to assist aiming under different light conditions.
ENLARGED VIEW
UMOA RETICLE RANGE ESTIMATING
1. MOA is half of the distance between the centers of one hash mark to that of the hash mark next to it.
2. Range estimating requires common knowledge of your target’s actual width and or height.
3. Set your scope at 10X magnification or the highest power of your particular scope should your highest power be below or above 10X magnification. View the target through the scope. Estimate the height or width of the target in MOA by determining how many hash marks the target spans.
4. Once the target’s height or width has been measured in MOA, use the following formula to estimate the distance to the target. An example scenario is provided to you below for reference.
RANGE ESTIMATING EXAMPLE
The length of an animal from shoulder to tail is 40 inches (1.016 meters). We see through the scope at 9X magnification that the animal spans 20 MOA. The distance to the animal can be derived using the formula below.
(1.016 x 3,438/20) X (9/10) = Range in meters to the animal 157.2 = Range in meters (or 172 yards) to the animal
ACCESSORIES INCLUDED
MaxStrength Picatinny/Weaver Rings, 1 Pair 3 Inch Sunshade Flip-open Lens Caps R2032 3V High Energy Lithium Battery Hex Screw Allen Wrench 3mm Allen Wrench 1.5mm Cleaning Cloth User Manual
