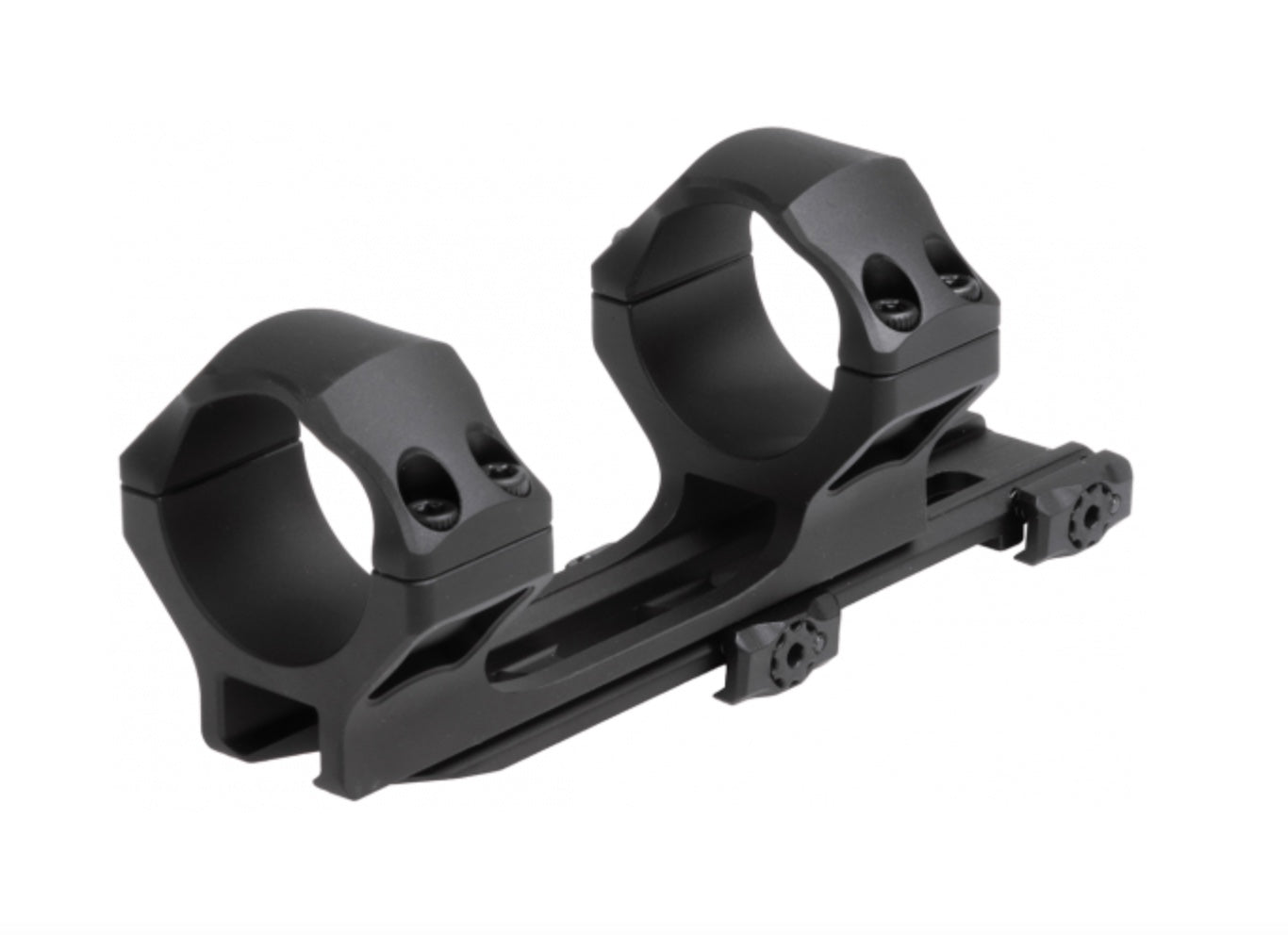

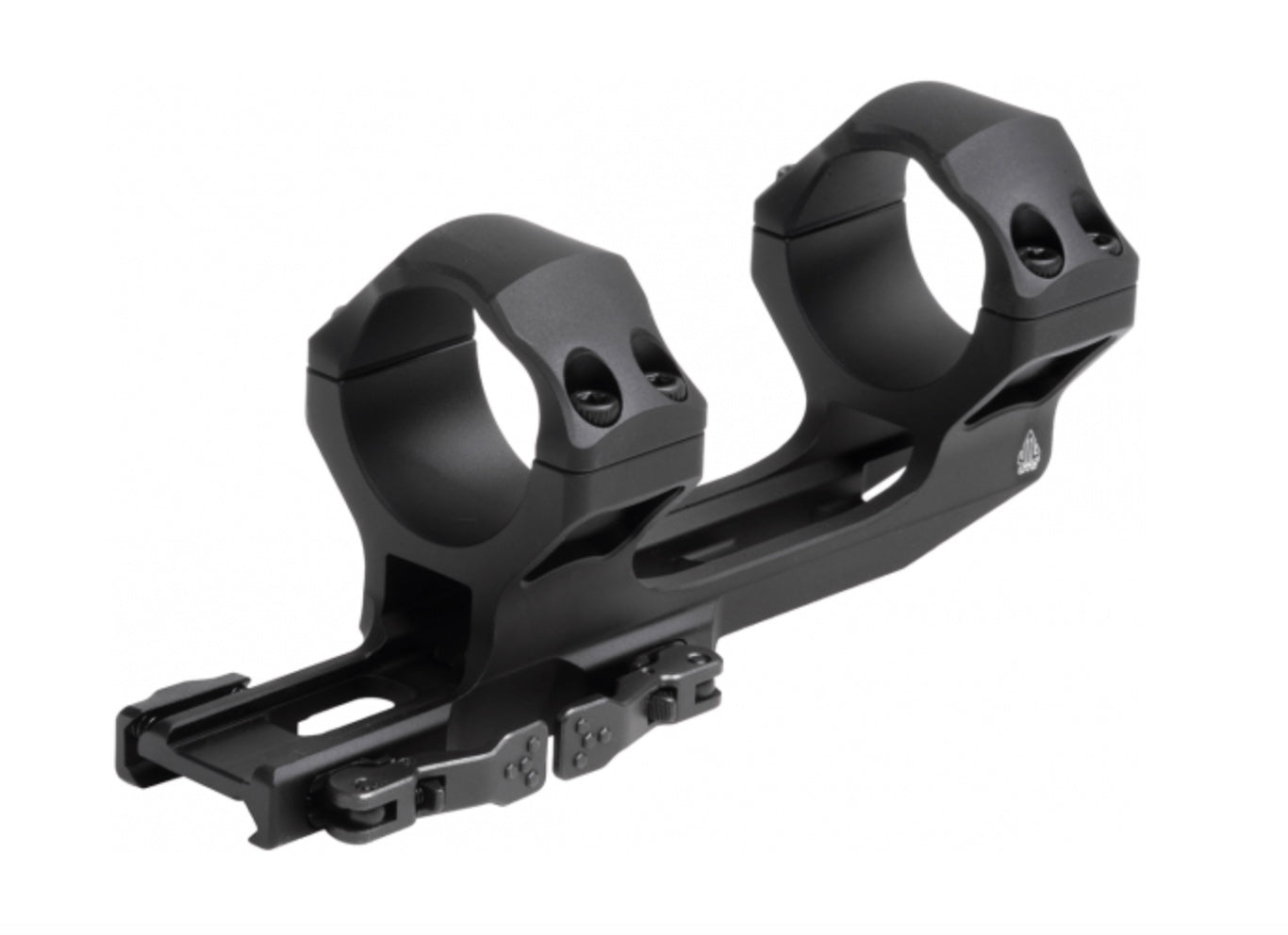

UTG ACCU-SYNC QR CANTILEVER MOUNT 34MM, X-HIGH PRO., 70MM OFFSET

  • Sale
  • Regular price $99.97


DETAILS:

  • Precision CNC Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodization
  • Significant Lightening Cuts Massively Reduce Weight Without Compromising Durability
  • Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets

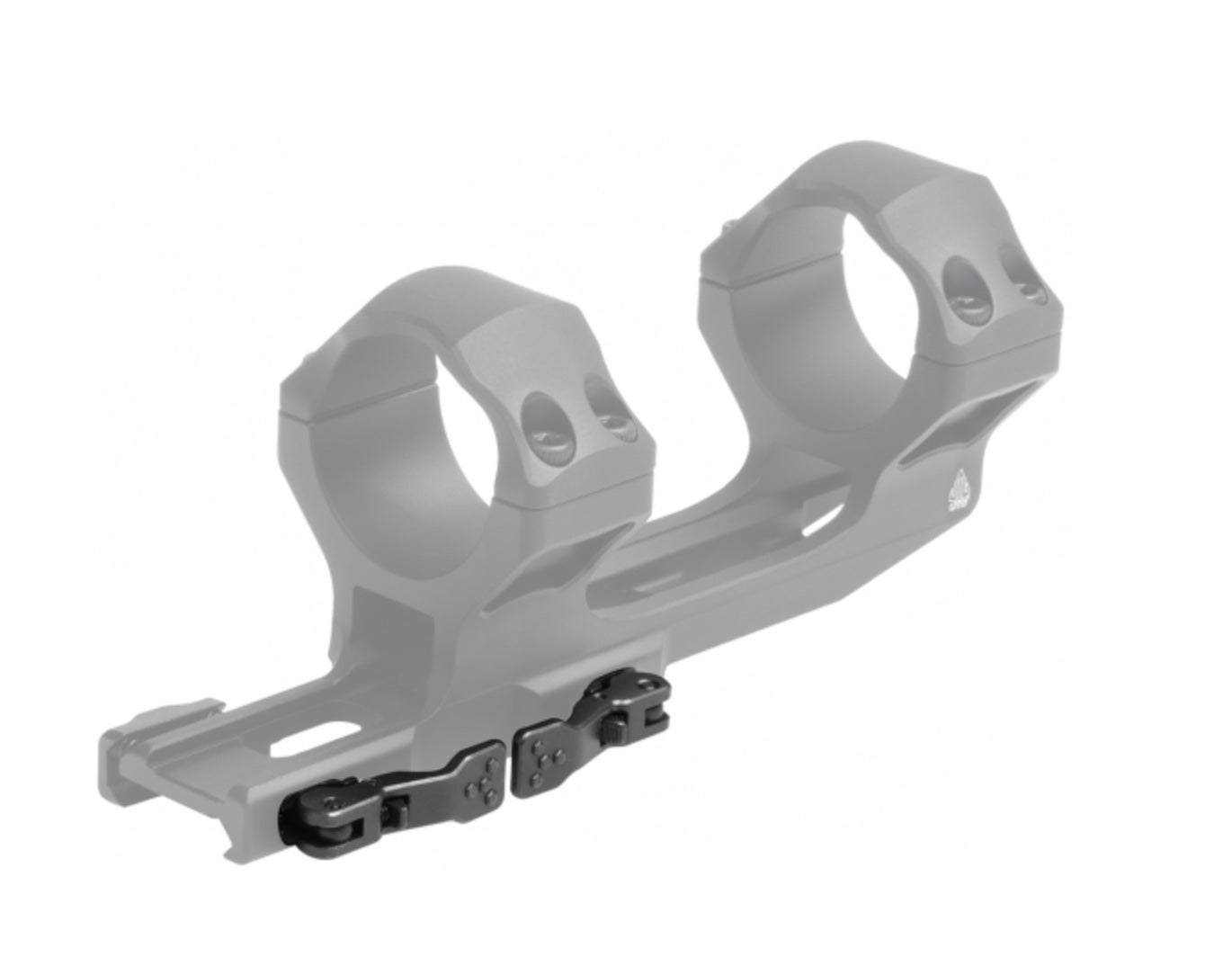

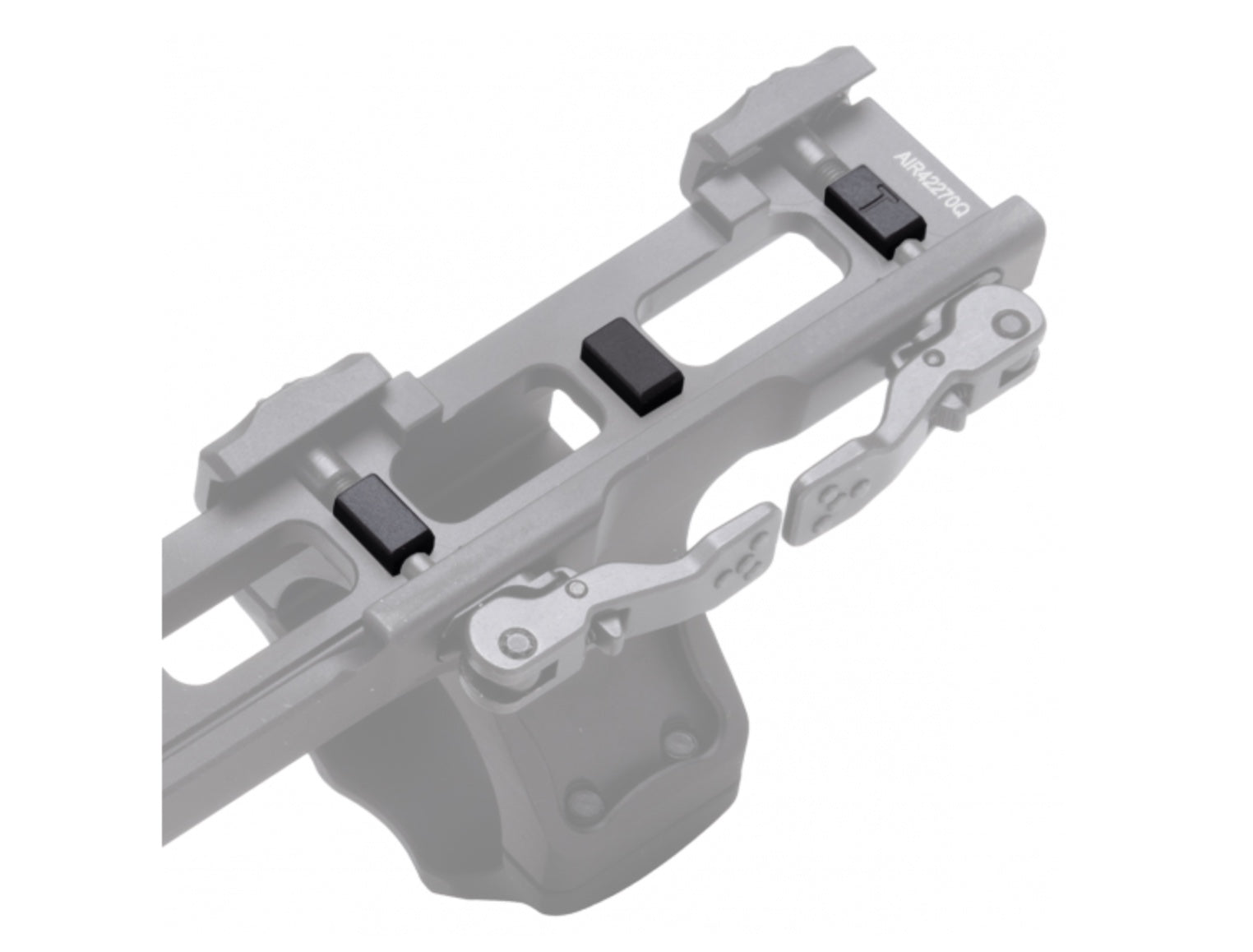

  • Quick Release (QR) Mount Features Tool-free Tension Adjustment, QD Locking Quick Release Levers, and Squared Recoil Stops for a Secure Zero Hold and Return to Zero
  • 22mm Saddle Height, 70mm Offset Distance, X-High Profile Fits 34mm Tube Optics with up to a 78mm Outer Objective Diameter

NOTE: We recommend tightening the ring top screws with a torque value of 25 inch-lb.

SPECIFICATIONS:

SADDLE HEIGHT (IN) 0.87
SADDLE HEIGHT (MM) 22
CANTILEVER OFFSET (MM) 70
WARRANTY Lifetime
NO. OF PIECES 1
MATERIALS 6061-T6 Aluminum
COLOR(S) Black
QUICK-DETACHABLE Yes
HEIGHT PROFILE X-High
CANT Yes
OPTIC TO MOUNT TORQUE VALUE (IN-LB) 25
SCOPE OUTER OBJECTIVE DIA (MAX) (MM/IN) 78
WEIGHT (OZ) 6.1

DIMENSIONS:

CANTILEVER OFFSET (MM) 70
CENTER HEIGHT (IN) 1.54
CENTER HEIGHT (MM) 39
INNER DIAMETER (MM/IN) 34 mm
INNER DIAMETER (MM/IN) 34 mm
RING WIDTH (MM) 25
SADDLE HEIGHT (IN) 0.87
SADDLE HEIGHT (MM) 22
