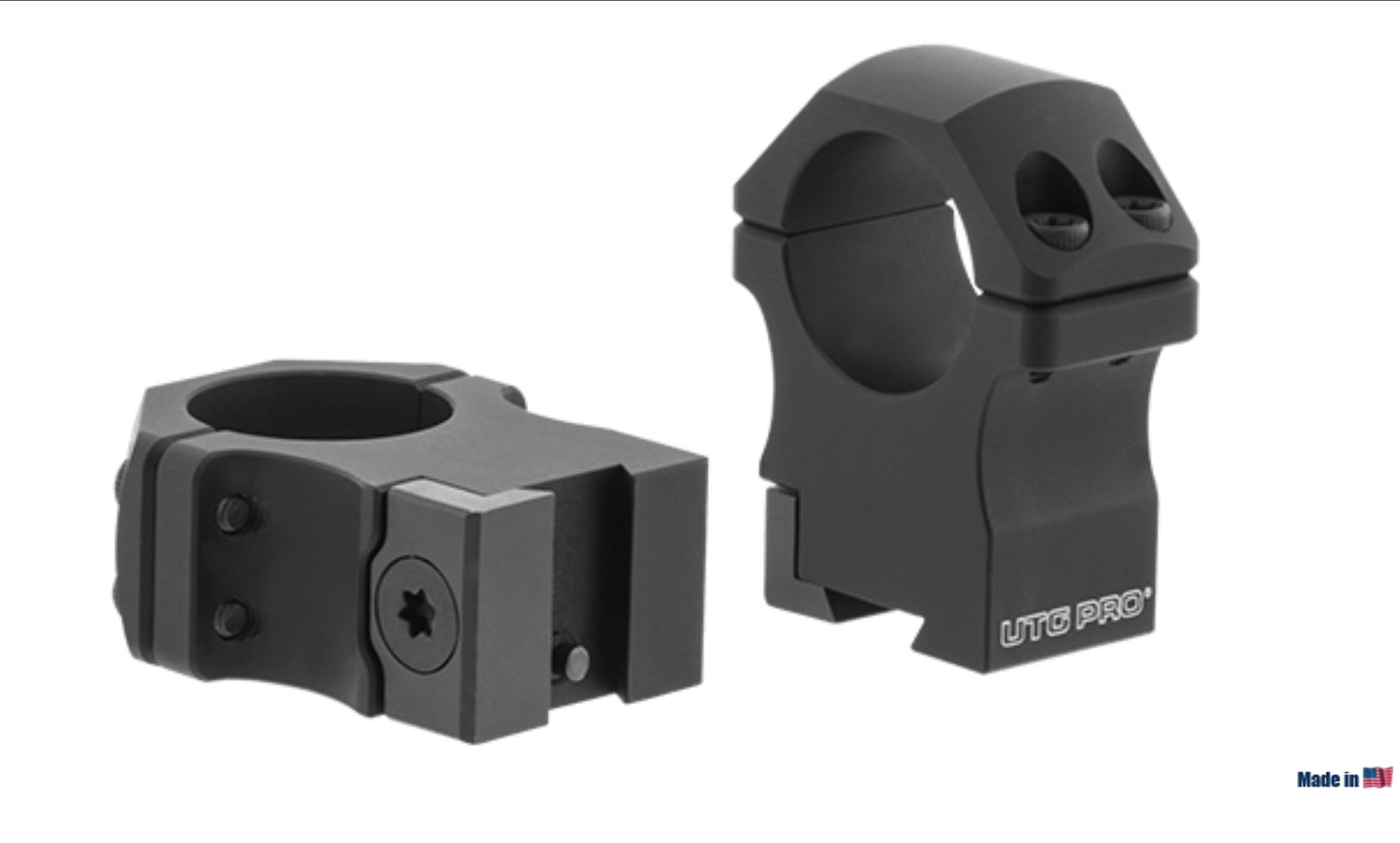

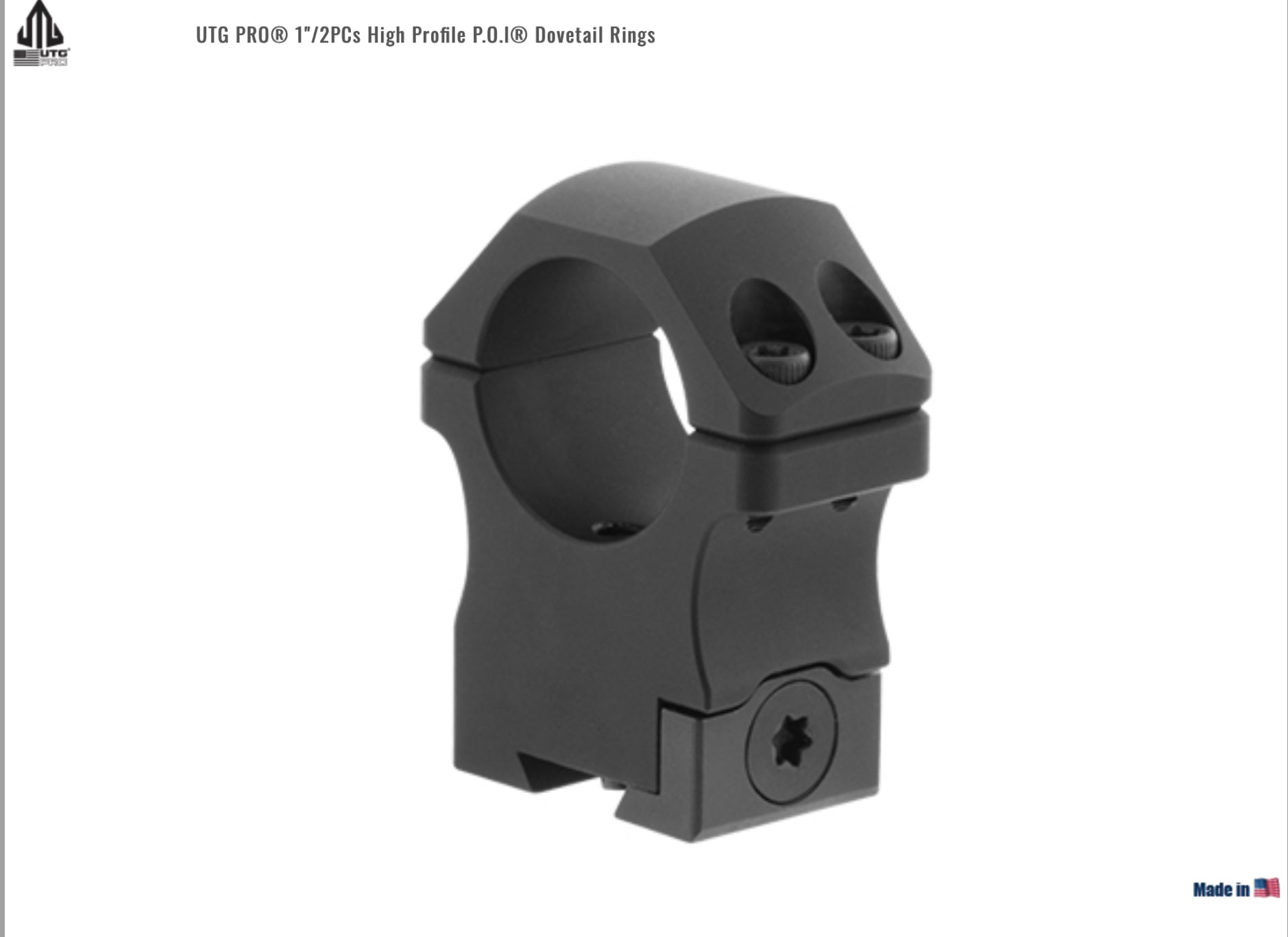

UTG PRO 1” / 2PCs HIGH PROFILE P.O.I. DOVETAIL/11MM RINGS PERFECT FOR AEA HP MODELS - RDU012520
Regular price
$64.97 USD
Sale price
$64.97 USD
Regular price
Save 0
Sold out
DETAILS
- Proudly Designed and Made in USA
- High Profile Precision Optics Interface (P.O.I®) Scope Rings Have a 33mm Center Height to Fit 1" Tube Optics with up to a 65mm Outer Objective Diameter
- The innovative Precision Optics Interface (P.O.I®) Addresses 3 of the Most Critical Areas in Scope Rings -

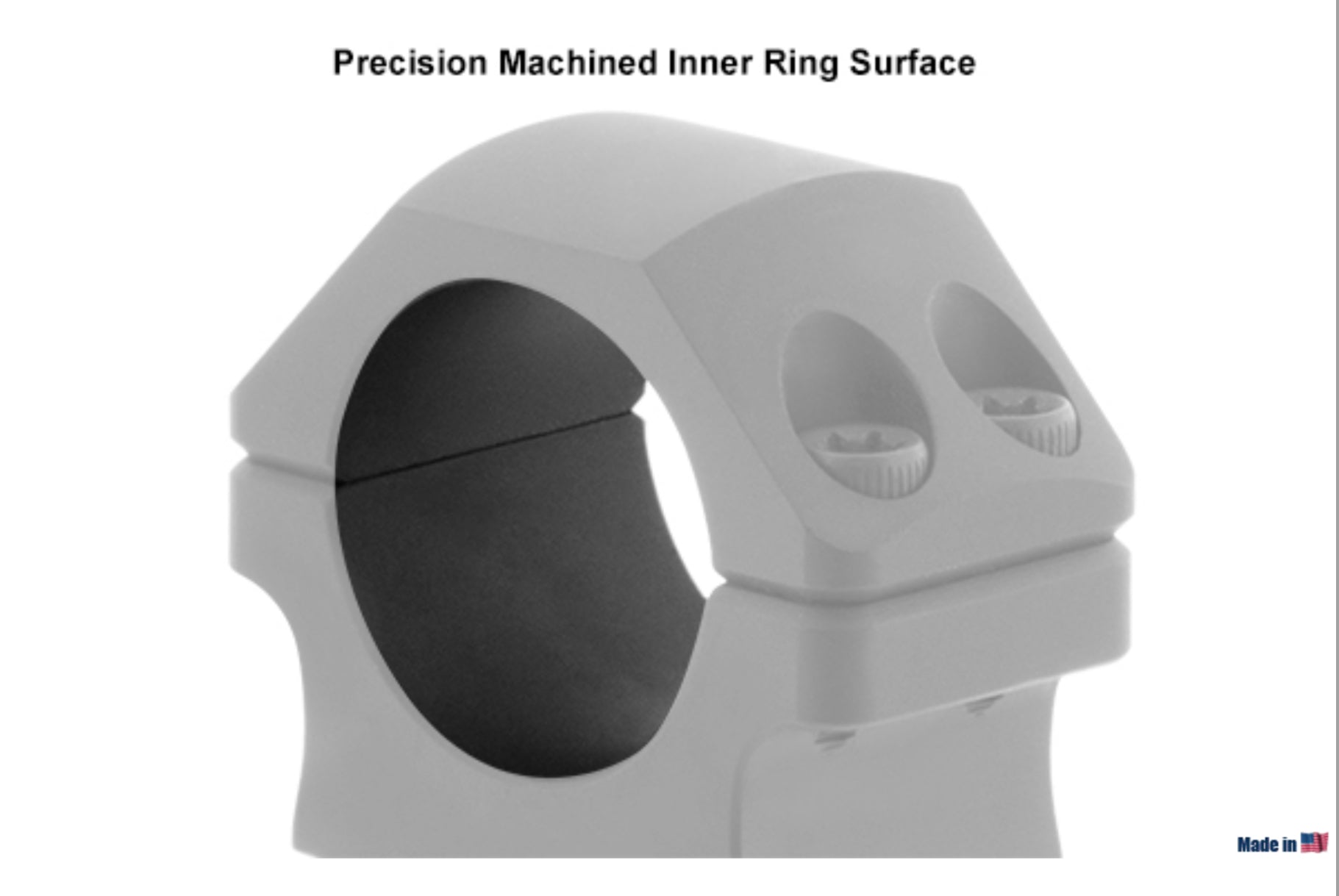

a) Progressively Machined and Precise Inner Diameter to Achieve a Seamless Interface Between the Scope Ring and Tube

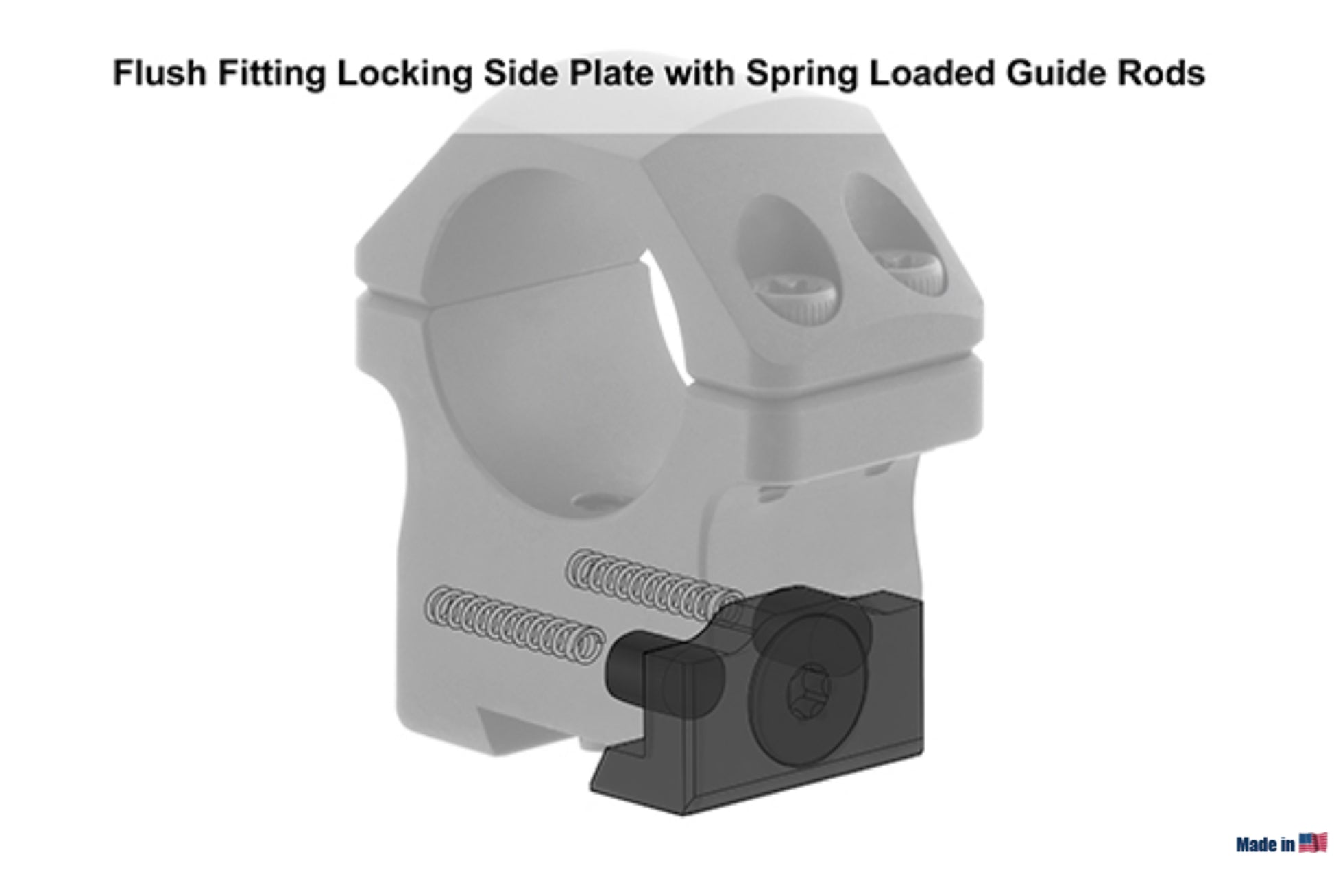

b) Torx Screw Locking Side Plate Controlled by Dual Spring Loaded Guide Rods Precisely Clenches Dovetail Rail for a Secure and Repeatable Zero Hold

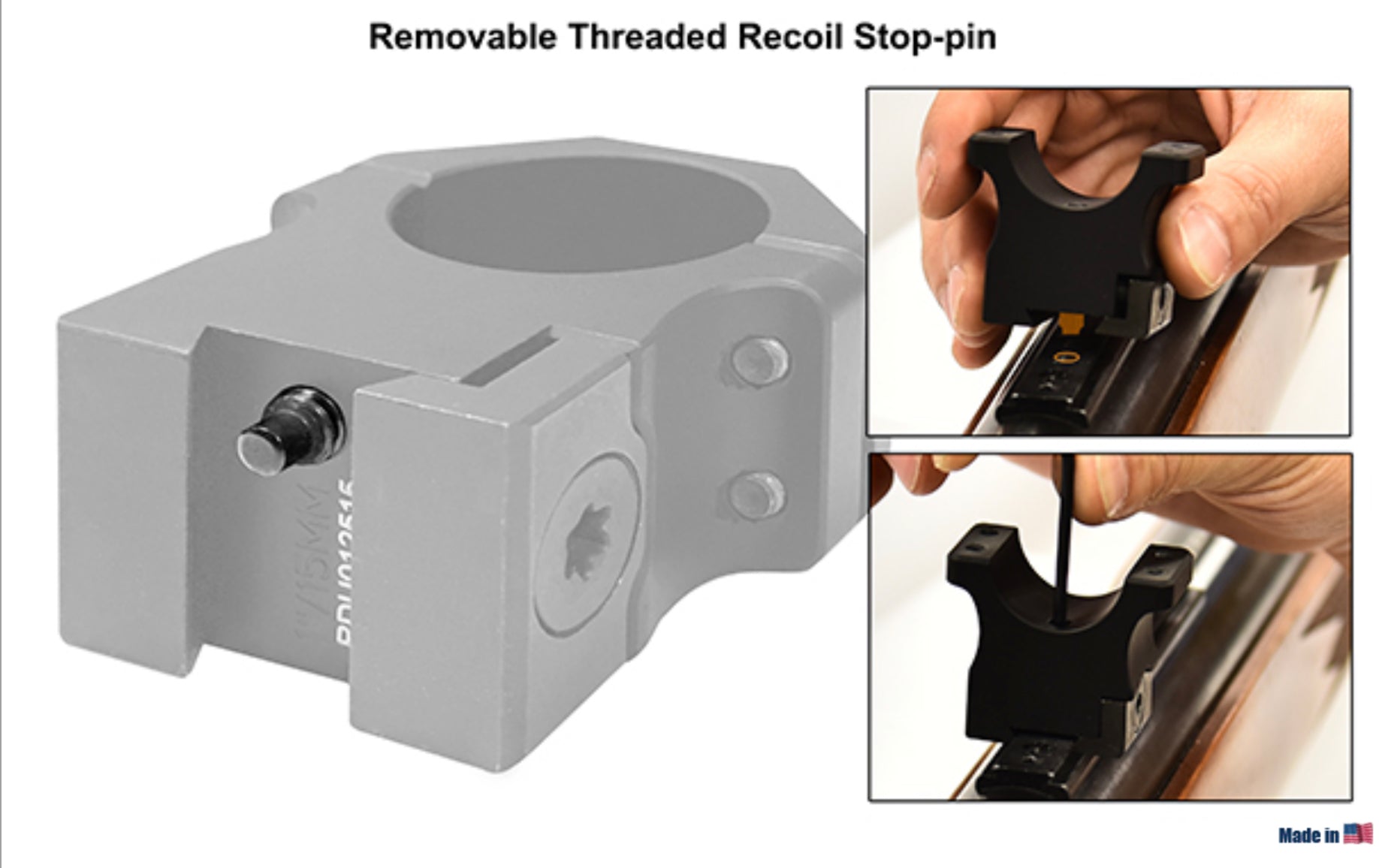

c) Removable Threaded Recoil Stop-pin Provides an Additional Interface Point with the Dovetail Rail for Added Security Against Bidirectional Recoil - Original Snag-free Contoured Profile with Reduced Weight and Size
- 6061-T6 Aircraft Aluminum and Steel Construction with a Matte Black Finish
- 2 Piece Ring Set, Each Equipped with 4 Top Torx Screws, Mounts onto Most Dovetail Rails
- EU PAT. EP2761064-0001, US PAT. D771218
NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 45 inch-lb.
ACCESSORIES INCLUDED
T25 Torx Wrench
SPECIFICATIONS
MADE IN USA | Yes |
---|---|
SADDLE HEIGHT (IN) | 0.79 |
SADDLE HEIGHT (MM) | 20 |
WARRANTY | Lifetime |
PATENT | EU PAT. EP2761064-0001 / US PAT. D771218 |
NO. OF PIECES | 2 |
MATERIALS | Aluminum |
COLOR(S) | Black |
QUICK-DETACHABLE | No |
PARTS INCLUDED | T25 Torx Wrench |
MOUNT TYPE | Dovetail |
HEIGHT PROFILE | High |
CALIBER RATING | .50 BMG |
OPTIC TO MOUNT TORQUE VALUE (IN-LB) | 25 |
MOUNT TO RAIL TORQUE VALUE (IN-LB) | 45 |
SCOPE OUTER OBJECTIVE DIA (MAX) (MM/IN) | 65 |
WEIGHT (OZ) | 2.8 / 5.6 |
DIMENSIONS
CENTER HEIGHT (MM) | 33 |
---|---|
INNER DIAMETER (MM/IN) | 1 in |
INNER DIAMETER (MM/IN) | 1 in |
RING WIDTH (MM) | 22 |
SADDLE HEIGHT (IN) | 0.79 |
SADDLE HEIGHT (MM) | 20 |
